| Feature |
Value |
| Type |

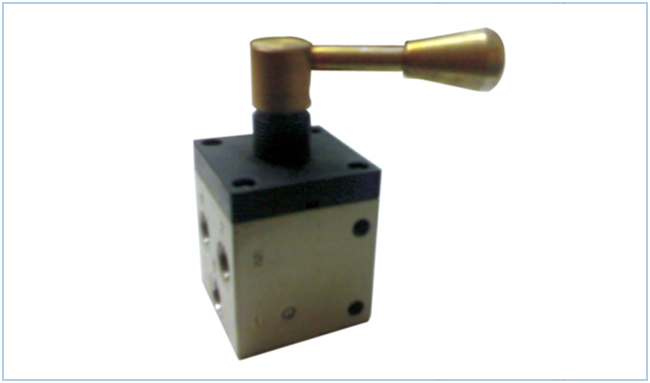

ST-5/2-2-HL (DTN) |
| Port size |
1/4"BSP |
| Orifice size |
6 mm |
| Medium |
Compressed air (Filtered & lubricated) |
| Operating pressure range |
0 to 10 kg/sq.cm |
| Minimum temperature of medium |
-100 C |
| Maximum temperature of medium |
600 C |
| Nominal flow rate |
550 LPM (6 kg/sq.cm input pressure & output open.) |
| Type of mounting |
Through-holes in housing |
| Material |
Aluminium, Steel, Nitrile, Delrin, Brass |
|
|
|
