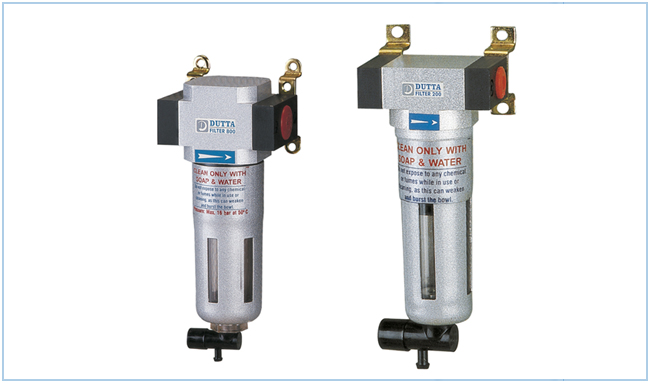

	Air Filter (AF)

To remove liquid and soild impurities. the air enters the bowl through the water separator and sets up a centrifugal flow bowl pattern that forces the liquid on the inside wall of the filter bowl. Form here, the condensate liquid runs down into the bottom of the bowl where it is trapped by the baffle to prevent air turbulence from carrying condensate back into the air system.

Accumulated liquid and soild impurities are blown out of the bowl by simply opening the drain. All the air which leaves the bowl on its way to the pipeline must pass through the filter element, which removes the solids from the remaining air. The filter has a sintered bronze filtering element for filter dust particles from the compressed air. A specially designed water separator is provided for moisture separation. A standard 40 micron filter element for can easily be replaced by a 5 micron filter element for applications. Draining is easily done by opening the drain cock.

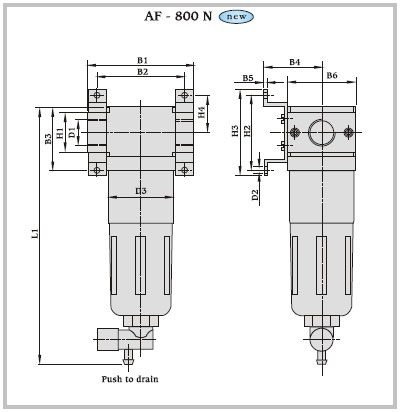

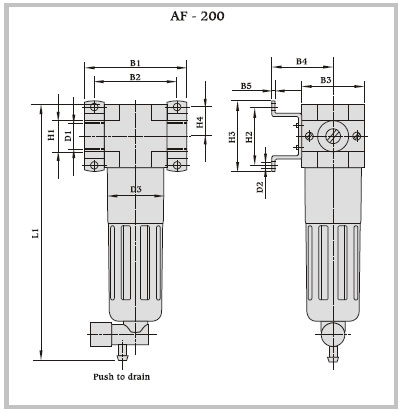

Basic Dimension :

	All dimensions in mm unless otherwise specified

Type	B1	B2	B3	B4	B5	B6	D1 BSP	D2 Dia.	D3 Dia.	H1	H2	H3	H4	L1
AF -200	64	52	40	40.0	2	--	1/4"	4.2	37	20	35	42	17.5	151.5
AF - 800 N	85	70	51	46.5	3	55	1/2"	5.5	52	32	60	69	30.0	203.0

	Specifications

Specifications

AF - 200

AF - 800 N

Medium

Compressed Air

Design

Sintered Filter with Double Diverter Vane

Port size

1/4" BSP

1/2" BSP

Mounting

Line Mounting or Mounting Bracket

Installation Position

Vertical

5⁰

Standard nominal flow rate*

1200 liter/Min.

3000 liter/Min.

Maximum operating pressure

16 Bar

Filter rating

Standard Microns (Optional 1, 2, 5, 10, 20, 70, 100)

Temperature Range

-10⁰C to 60⁰C

Condensate capacity (max)

22 ml

43 ml

Material

Housing and Connecting plates - Aluminium, Filter Bowl - Polycarbonate, Seal - Nitrile

*With 10 bar primary pressure, a working pressure 6 bar, pressure drop of 1 bar.

Note: Subject to change without prior notice.
