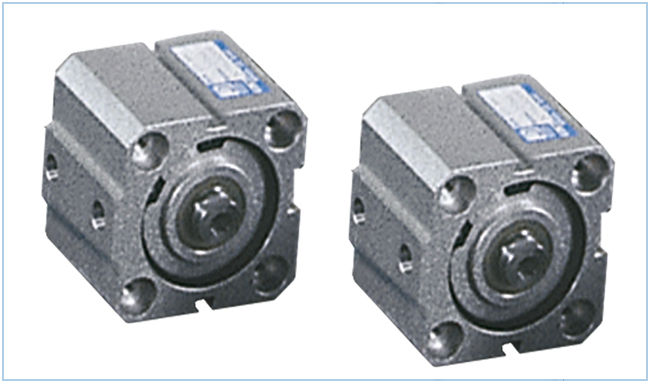

	Short Stroke Cylinders Double-Acting Female Thread (with magnetic piston)

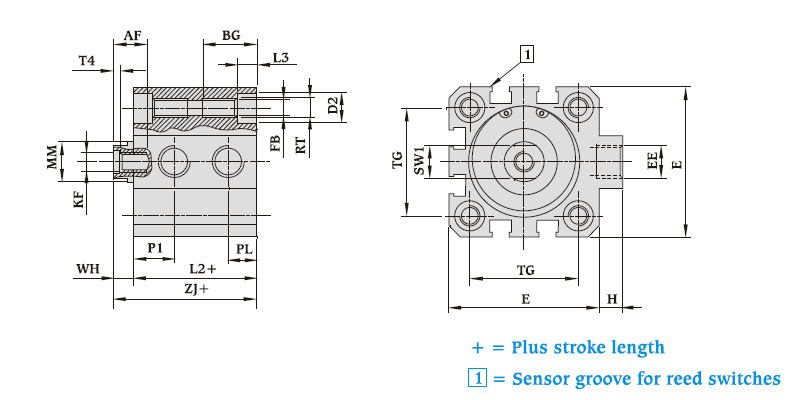

Basic Dimensions
Type : SSC - DA - FT - MG

	All dimensions in mm unless otherwise specified

Piston Dia mm	AF min.	BG min.	D2Ø	E mix.	EE BSP	FBØ	H	KF	L2	L3	MMØ	PL	PL1	RT	T4	TG	WH	ZJ	SW1
25	10	18	7.5	40	M5	4.2	1.5	M5 x0.8	39.5	4.5	10	7	7	M5 x 0.8	-	26	5.5	45.0	8
32	12	21.7	9	45.0	1/8"	5.2	7.0	M6 x 1P	33	5.7	12	8.5	10.0	M6 x 1P	2.6	32.5	6	39.0	10
40	12	21.7	9	53.5	1/8"	5.2	7.0	M6 x 1P	35	5.7	12	8.5	12.0	M6 x 1P	2.6	38.0	6	41.0	10
50	16	22.8	11	63.5	1/8"	6.8	7.0	M8 x 1.25P	35	6.8	16	9.5	12.0	M8 x 1.25P	3.3	46.5	8	43.0	13
63	16	22.8	11	77.0	1/8"	6.8	7.0	M8 x 1.25P	39	6.8	16	10.0	12.0	M8 x 1.25P	3.3	56.5	8	47.0	13
80	20	25.0	14	95.0	1/8"	8.5	6.5	M10 x 1.5P	43	9.0	20	11.0	15.0	M10 x 1.5P	4.7	72.0	8	51.0	17
100	24	25.0	14	113.0	1/4"	8.5	7.0	M12 x 1.75P	52	9.0	25	13.5	16.5	M10 x 1.5P	6.1	89.0	10	62.0	22

	Short Stroke Cylinders Double-Acting Male Thread (with magnetic piston)

Basic Dimensions
Type : SSC - DA - MT- MG

	All dimensions in mm unless otherwise specified

Piston Dia mm	AF - 0.5.	BG min.	D2Ø	E mix.	EE BSP	FBØ	H	KF	L2	L3	MMØ	PL	PL1	RT	TG	WH	ZJ	SW1
25	14	18	7.5	40	M5	4.2	1.5	M10 x1.25P	39.5	4.5	10	7	7	M5 x 0.8	26	5.5	45.0	8
32	14	21.7	9	45.0	1/8"	5.2	7.0	M10 x1.25P	33.0	5.7	12	8.5	10.0	M6 x 1P	32.5	6	39.0	10
40	14	21.7	9	53.5	1/8"	5.2	7.0	M10 x1.25P	35.0	5.7	12	8.5	12.0	M6 x 1P	38.0	6	41.0	10
50	16	22.8	11	63.5	1/8"	6.8	7.0	M12 x 1.25P	35.0	6.8	16	9.5	12.0	M8 x 1.25P	46.5	8	43.0	13
63	16	22.8	11	77.0	1/8"	6.8	7.0	M12 x 1.25P	39.0	6.8	16	10.0	12.0	M8 x 1.25P	56.5	8	47.0	13
80	22	25.0	14	95.0	1/8"	8.5	6.5	M16 x 1.5P	43.0	9.0	20	11.0	15.0	M10 x 1.5P	72.0	8	51.0	17
100	28	25.0	14	113.0	1/4"	8.5	7.0	M20 x 1.5P	52.0	9.0	25	13.5	16.5	M10 x 1.5P	89.0	10	62.0	22

Note : Max. stroke length 100.

Note: Subject to change without prior notice.
