	Lubricators

The lubricator is a device which ejects drop of oil into the flowing compressed air to automatically provide proper internal lubrication for an air-operated tool or other devices. Oil is injected only when there is a flow of air through the lubrcator. The drip rate is regulated using an adjusting screw. For general use, 6 drops per 1000 liters of air are sufficient. This is a mist-type lubricator. The proporation-maintaining air in a precisely metered quantity.

A regulator ensures that the amount that the amount of oil must is proportional to the flow rate. The pressure drop that occurs when the air flow through a venturi nozzle, is used to convey oil from a reservoir to the drip cap (sight feed dome). From here, the oil drips through a syphon tube into an air passage. As the oil leaves the syphon tube, it is atomised by the flowing air. Oil can be filled during operation.

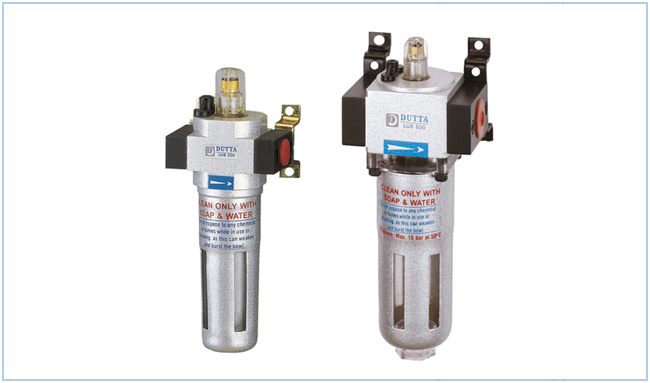

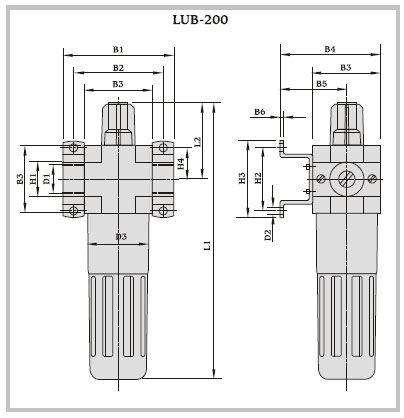

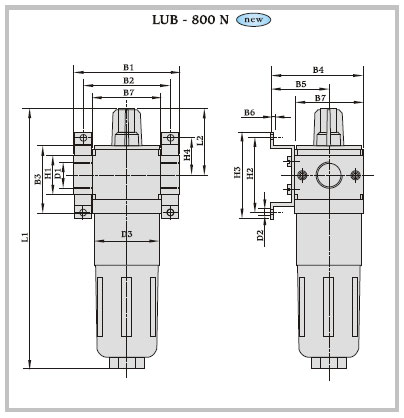

Basic Dimension :

	All dimensions in mm unless otherwise specified

Type	B1	B2	B3	B4	B5	B6	B7	D1 BSP	D2 Dia.	D3	H1	H2	H3	H4	L1	L2
LUB -200	64	52	40	60.0	40	2	- -	1/4"	4.2	37	20	35	42	17.5	163	46
LUB - 800 N	85	70	54	74	46.5	3	55	1/2"	5.5	52	32	60	69	30	205	50

	Specifications

Specifications

LUB - 200

LUB - 800 N

Medium

Filtered Compressed air (40

standard)

Design

Directly Proportional Lubricator (mist type)

Mounting

Line Mounting or Mounting Bracket

Port size

1/4" BSP

1/2" BSP

Installation Position

Vertical

5⁰

Standard nominal flow rate*

2300 liter/Min.

6100 liter/Min.

Maximum operating pressure

16 Bar

Range of Lubricator oepration

From 3 Liter/min.

From 6 Liter/min.

Oil capacity

45 ml

110 ml

Recommended Oil

130 VG 32 (Servo system 32) or equivalent Lubricant

Temperature Range

-10⁰C to 60⁰C

Material

Housing and Connecting plates - Aluminium, Lubricator Bowl - Polycarbonate, Seal - Nitrile

*With 10 bar primary pressure, a working pressure 6 bar, pressure drop of 1 bar.

Note: Subject to change without prior notice.
