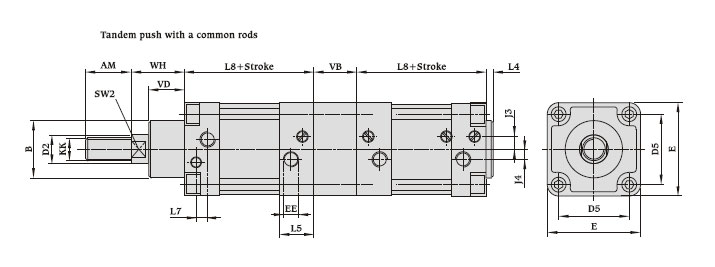

All dimensions in mm unless otherwise specified |
|
|
|
|
|
Piston Dia |
AM |
BØ |
D2Ø |
D5 |
D7 |
E |
EE
BSP |
J3 |
J4 |
KK
|
L4 |
L5 |
L6 |
L7 |
L8 |
SW2 |
VB |
VD |
WH |
| 32 |
22 |
30 |
12 |
32.5 |
M5 x 0.8 |
45 |
G1/8M |
7 |
- |
M 10 x 1.25 |
4 |
26 |
15 |
9.5 |
94 |
10 |
25 |
16 |
26 |
| 40 |
24 |
35 |
16 |
39.6 |
M5 x 0.8 |
54 |
G1/4M |
9.6 |
4.5 |
M 12 x 1.25 |
5.5 |
26 |
15 |
3 |
105 |
13 |
30 |
20 |
30 |
| 50 |
32 |
40 |
20 |
48.0 |
M8 x 1.25 |
65 |
G1/4M |
12 |
5.5 |
M 16 x 1.5 |
5 |
24 |
14 |
4 |
105 |
17 |
40 |
25 |
37 |
| 63 |
32 |
42 |
20 |
59.4 |
M8 x 1.25 |
80 |
G3/8M |
13 |
11.5 |
M 16 x 1.5 |
6 |
28.5 |
14 |
- |
115 |
17 |
40 |
28 |
40 |
| 80 |
40 |
48 |
25 |
70.7 |
M8 x 1.25 |
96 |
G3/8M |
17 |
16 |
M 20 x 1.5 |
6 |
27 |
17 |
- |
122 |
22 |
50 |
34 |
49 |
| 100 |
40 |
52 |
25 |
93.3 |
M8 x 1.25 |
126 |
G1/2M |
17.5 |
18 |
M 20 x 1.5 |
7 |
32.5 |
17 |
- |
134 |
22 |
50 |
40 |
53 |
|
|
|
