Gate Valves (Shuttle Valve) |
|
|
|
|
|
|
|
|
|
|
|
|
|
Feature |
|
|
|
|
|

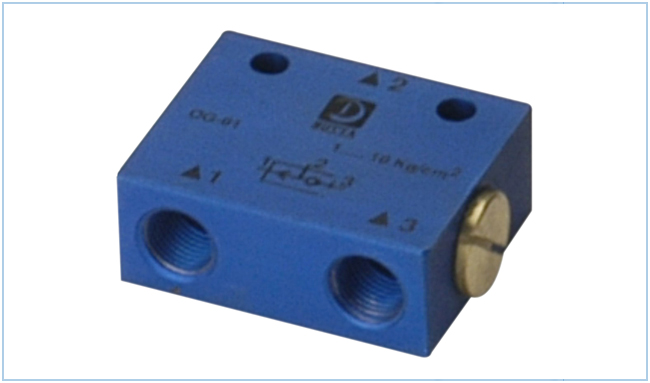

| The shuttle valve has two inlets (1,3) and one outlet (2). The Valve automatically blocks the inlet which is not pressurised. If both inlets are pressurised simultaneously, the higher pressure is swicthed to outlet (1). |
|
|
|
|
|
|
Application |
|
|
|
|
|
| This unit allows for the "OR" function. i.e. an output signal is present provided that at least one input signal is present. "OR" gates are used to control cylinders or valves from various positions and for "OR" logic circuits. |
|
|
|
|
|
|
|
|
|
|
| Feature |
Value |
| Type |
OG-01 |

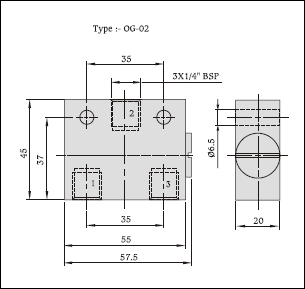

OG-02 |
| Medium |
Compressed air (Filtered & lubricated) |
| Design |
"OR" gate (shuttle valve) |
| Mounting |
Through holes in housing |
| Connection |
1/8"BSP |
1/4"BSP |
| Office |
4.0 mm |
7.0 mm |
| Standard Nominal flow rate |
500 LPM |
1170 LPM |
| Pressure range |
0 to 10 bar |
| temperature range |
-100 C to +600 C |
| Material |
Aluminium, Nitrile, Delrin, Brass |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
