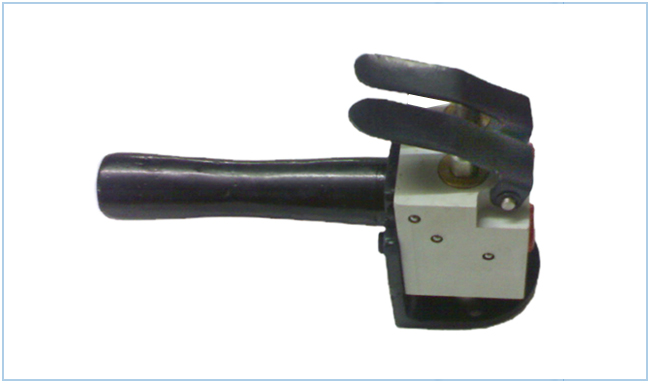

Pendent Valves




Male Connectors (MC), Female Connectors (MC), Swivel Elbows (SE), Swivel Tee (ST), Distribution Hollow Bolts (DHB), Equal Tee (ET), Bulkhead Connectors (BHC), Sockets (SKT), Reducers (R), Plugs (P), Sealing Rings (SR), Common Supply Manifolds (CSM), BLock Type Manifolds (BTM),
  Pendent Valves




pendent valve

pendent valve
 1 = Supply port 1/4" BSP
 4.2 = Woring or outlet lines 1/4" BSP
 3 = Exhaust port Silencer

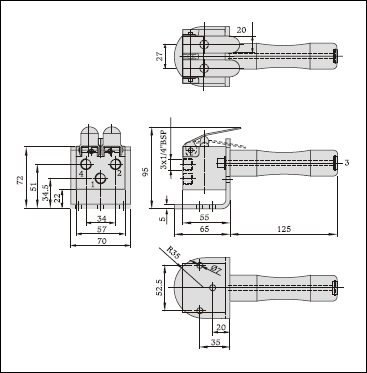

Model:- PN-4/3-2-HL (NTR)
4 Port 3 position hand lever valve (NTR)

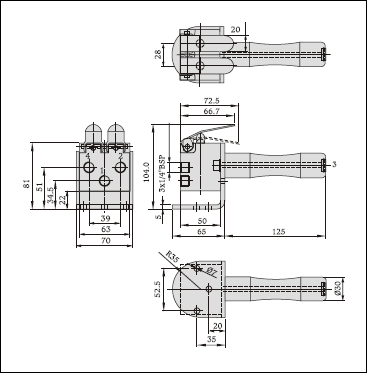

Model:- PN-4/3-2-HL (NEG)
4 Port 3 position hand lever valve (NEG)



pendent valve

pendent valve


Male Connectors (MC), Female Connectors (MC), Swivel Elbows (SE), Swivel Tee (ST), Distribution Hollow Bolts (DHB), Equal Tee (ET), Bulkhead Connectors (BHC), Sockets (SKT), Reducers (R), Plugs (P), Sealing Rings (SR), Common Supply Manifolds (CSM), BLock Type Manifolds (BTM),
  Technical Specification

  Feature   Value
  Type   PN-4/3-2-HL-(NTR)   PN-4/3-2-HL (NEG)
  Port size   1/4"BSP
  Orifice size   6 mm
  Medium   Compressed air (Filtered & lubricated)
  Operating pressure range   0 to 10 kg/sq.cm
  Minimum temperature of medium   -100 C
  Maximum temperature of medium   600 C
  Type of mounting   Mounting bracket
  Material   Aluminium, Brass, Nitrile, Steel

Note: Subject to change without prior notice.
