| Piston Nominal Size (mm) |
12 16 20 25 |
| Medium |
Compressed air (filtered, lubricated) |
| Design |

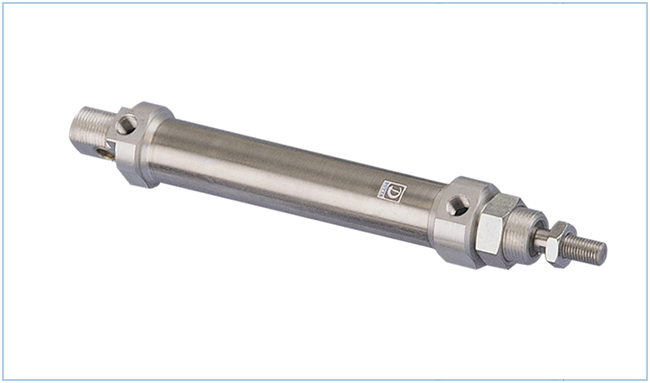

Piston Cylinder |
| Mode of operation |
Double-acting / single-acting |
| Sensing type |
None |
| Type of cushioning |
Internal cushioning ring (Non-Adjustable) |
| Operating pressure Min. |
1 bar |
| Operating pressure Max. |
10 bar |
| Min. ambient temperature |
-200 C |
| Max. ambient temperature |
800C |
| Material |
End caps-Aluminium, Barrel-Stainless steel, Piston rod-S.S. 410 Roller burnished, / En8 Hard Chrome Plated, Seals-Polyurethane |
|
|
|
|
|
