  Male Connectors (MC)


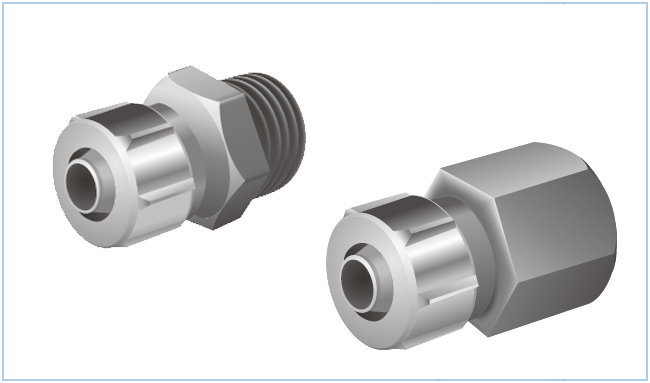

Male Connectors



Male Connectors (MC), Female Connectors (MC), Swivel Elbows (SE), Swivel Tee (ST), Distribution Hollow Bolts (DHB), Equal Tee (ET), Bulkhead Connectors (BHC), Sockets (SKT), Reducers (R), Plugs (P), Sealing Rings (SR), Common Supply Manifolds (CSM), BLock Type Manifolds (BTM),
  Male Connectors (MC)

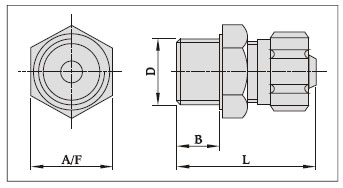

      Basic Dimension
Male Connectors
   Male Connectors

Material: Aluminium Finish Yellow passivation for * EN-1A
Finish: Blue anodised



 Order code No. and type  Tube ID in mm  Connection (D)  Nominal Bore in mm
Dimensions
 B mm
L mm
  A/F
 MC - M5 - PU3*  3  M5  2.4  5.5  18  8 mm
 MC - M5 - PU4*  4  M5  3.4  5.0  23  1/2"
 MC -1/16" - PU3*  3  1/16" BSP  2.4  5.0  18  10 mm
 MC -1/16" - PU4*  4  1/16" BSP  3.4  7.0  25  1/2"
 MC -1/8" - PU3  3  1/8" BSP  2.4  6.5  21  1/2"
 MC -1/8" - PU4  4  1/8" BSP  3.4  8.5  27  1/2"
 MC -1/8" - PU6  6  1/8" BSP  5.3  8.5  27  1/2"
 MC -1/8" - PU8  8  1/8" BSP  7.0  7.5  31  5/8"
 MC -1/4" - PU3  3  1/4" BSP  2.4  9.0  24  5/8"
 MC -1/4" - PU4  4  1/4" BSP  3.4  8.5  27  5/8"
 MC -1/4" - PU6  6  1/4" BSP  5.3  8.5  27  5/8"
 MC -1/4" - PU8  8  1/4" BSP  7.0  8.5  33  5/8"
 MC -1/4" - PU9  9  1/4" BSP  8.0  8.5  33  3/4"
 MC -3/8" - PU4  4  3/8" BSP  3.4  13.0  34  7/8"
 MC -3/8" - PU6  6  3/8" BSP  5.3  13.0  34  7/8"
 MC -3/8" - PU8  8  3/8" BSP  7.0  13.0  39  7/8"
 MC -3/8" - PU9  9  3/8" BSP  8.0  13.0  39  7/8"
 MC -1/2" - PU4  4  1/2" BSP  3.4  11.0  29  1"
 MC -1/2" - PU6  6  1/2" BSP  5.3  11.0  29  1"
 MC -1/2" - PU8  8  1/2" BSP  7.0  13.0  38  1"
 MC -1/2" - PU9  9  1/2" BSP  8.0  13.0  38  1"
 MC -1/2" - PU13  13  1/2" BSP  12.0  14.5  41  1"

Male Connectors (MC), Female Connectors (MC), Swivel Elbows (SE), Swivel Tee (ST), Distribution Hollow Bolts (DHB), Equal Tee (ET), Bulkhead Connectors (BHC), Sockets (SKT), Reducers (R), Plugs (P), Sealing Rings (SR), Common Supply Manifolds (CSM), BLock Type Manifolds (BTM),
  Female Connectors (FC)

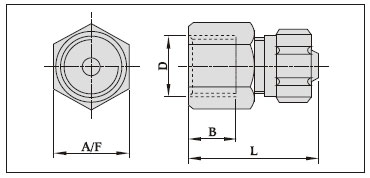

      Basic Dimension
Female Connectors
   Female Connectors

Material: Aluminium
Finish: Blue anodised


 Order code No. and type  Tube ID in mm  Connection (D)  Nominal Bore in mm
Dimensions
 B mm
L mm
  A/F
 FC -1/8" - PU4  4  1/8" BSP  3.4  10.0  28  1/2"
 FC -1/8" - PU6  6  1/8" BSP  5.3  10.0  28  1/2"
 FC -1/4" - PU4  4  1/4" BSP  3.4  10.0  28  5/8"
 FC -1/4" - PU6  6  1/4" BSP  5.3  10.0  28  5/8"
 FC -1/4" - PU8  8  1/4" BSP  7.0  12.0  34  5/8"
 FC -3/8" - PU6  6  3/8" BSP  5.3  12.0  31  3/4"
 FC -3/8" - PU6  8  3/8" BSP  7.0  12.0  35  3/4"
 FC -1/2" - PU6  8  1/2" BSP  7.0  15.5  35  1"
