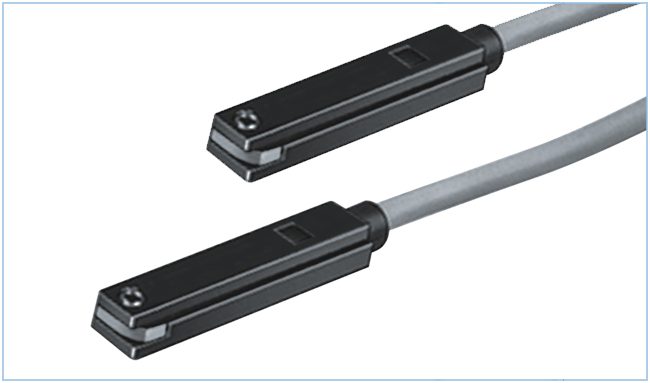

Magnetic Sensors - DMS - 24VDC NO

Features :

		Electrical output singal
		Responds to a magnetic field
		Output supplies, It can therefore only have one of the two statuses.
		Equiped with a contact
		Connection via a cable fitted to the sensor
		Can be fitted in an 8 mm slot
		For DC voltage
		Normally open contact
		No mounting kit required

Application :

The proximlty sensors are used for contactless Indication with Deluxe (DCP) cylinders having a sensor grove.
It emits an electrical signal when a magnetic field approaches. the approaches. the switching status is indicated by a red light emitting diode.

	Technical Specifications

Features	Value
Medium	Magnetic field & electric current
Design	Electric signal
Function on actuation	N/O Contact
Size of sensor	8
Switching accuracy	0.1 mm
Ambient temprerature min. standard	-30⁰C
Ambient temprerature max. standard	70⁰C
Ambient temprerature max. screwed	-5⁰C
Ambient temprerature max.	70⁰C
Connection type elec.	cable
Number of cable	3
Lengtd of cable	2500 mm
Number of plus, plug connections	3
Operating status display	Red LED
Type of mounting	Clamping in sensor slot
Product weight	25 gm
Type of voltage	AC / DC
Nominal operating voltage (DC)	24 V
Operating voltage min. (DC)	12 V
Operating voltage min. (DC)	30 V
Nominal operating max. (AC)	24 V

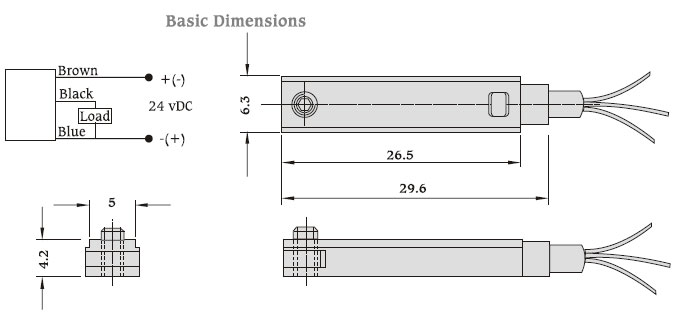

Working Principle :

Note: Subject to change without prior notice.
