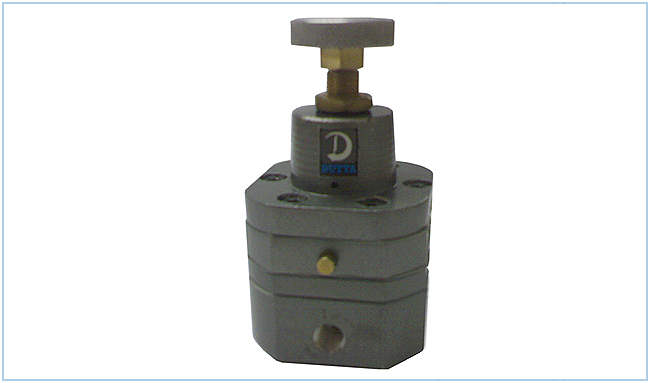

| Model |
PR-01-0-3.5 |
| Medium |
Filtered compressed air (Lubricated or unlubricated) |
| Design |
Diaphragm regulator |

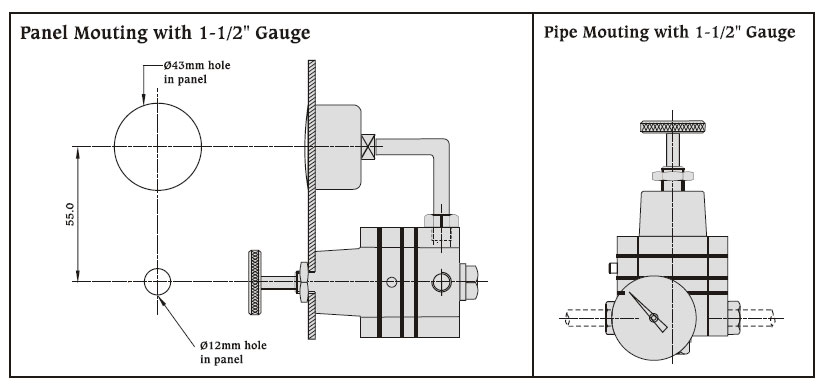

| Mounting |
Pipe mounting, Panel mounting |
| Port size |
1/8" Bsp |
| Pressure gauge Port size |
1/8" Bsp |
| Standerd nominal flow rate |
280 LPM at 3.5 Kg/sq.cm output & 7.5 kg/sq.cm input |
| Maximum Input pressure |
10 kg/sq.cm |
| Regulating Adjustment |
Better thane 0/03% of regulated output. |
| Temperature Range |
0 to 700C |
| Material |
Aluminium, Brass, Stainless Steel, Nitrile & Polyurethane |
