| Feature |
Value |
| Type |

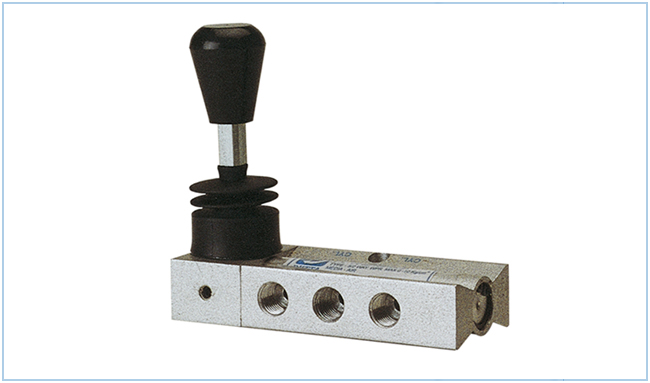

SP-5/3-4-HL (spring) |
| Port size |
IN/OUT-1/2"BSP, EXHAUST-1/2"BSP. |
| Acting |
Hand lever spring return |
| Orifice size |
11 mm |
| Medium |
Compressed air (Filtered & lubricated) |
| Operating pressure min. |
0 kg/cm2 |
| Operating pressure max. |
10 kg/cm2 |
| Minimum temperature of medium |
-100 C |
| Maximum temperature of medium |
600 C |
| Nominal flow rate |
2500 LPM (6 kg/cm2 input pressure & output open.) |
| Type of mounting |
Screw |
| Material |
Aluminium, Steel, Nitrile, Delrin |
