 Cylinder Size (mm)  Thrust  3 kg/cm2 Air  Consumption  Thrust  5 kg/cm2 Air  Consumption  Thrust  7 kg/cm2 Air  Consumption  Thrust  10 kg/cm2 Air  Consumption
 Piston Dia x Rod Dia  kgf  in Ltr./mm Stroke  kgf  in Ltr./mm Stroke  kgf  in Ltr./mm Stroke  kgf  in Ltr./mm Stroke
 125 x 35
 Forward  331.38  0.04909  552.30  0.0736  773.22  0.09818  1104.60  0.13500
 Reverse  305.40  0.04524  509.00  0.06786  712.60  0.09048  1018.00  0.12442
 150 x 35
 Forward  477.19  0.07069  795.31  0.10604  1113.44  0.14139  1590.63  0.19441
 Reverse  451.21  0.06684  752.01  0.10026  1052.82  0.13369  1504.03  0.18383
 203.2 x 45
 Forward  875.70  0.12973  1459.50  0.19460  2043.30  0.25946  2919.01  0.35676
 Reverse  832.75  0.12337  1387.92  0.185057  1943.09  0.24674  2775.85  0.33927
 254 x 57
 Forward  1368.28  0.20270  2280.47  0.30406  3192.67  0.40541  4560.95  0.55745
 Reverse  1299.38  0.19250  2165.63  0.28875  3031.88  0.38500  4331.26  0.52937
 304.8 x 57
 Forward  1970.33  0.29186  3283.88  0.43785  4597.42  0.58380  6567.77  0.80272
 Reverse  1901.42  0.28169  3169.04  0.42253  4436.66  0.56338  6338.09  0.77465

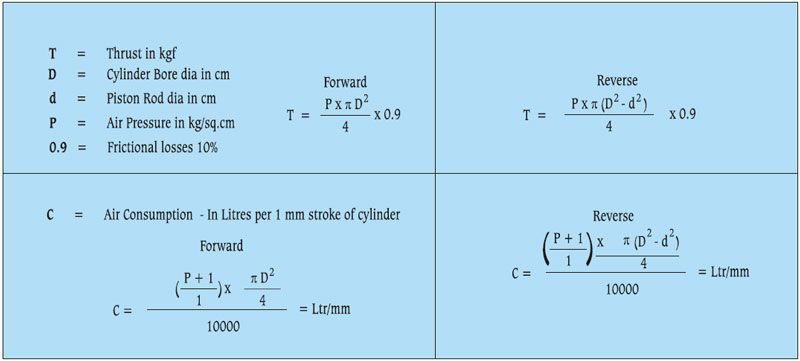

Thrust & Air consumption of Cylinders
