Cylinder selection guide

Operating Pressure at kg/sq. cmTheoretical forces (at mechanical efficiency = 100%)
50100160200
Piston Dia
mm
Rod Dia
mm
Piston Area
sq. cm
Rod Area
sq. cm
Push
kgf
Pull
kgf
Push
kgf
Pull
kgf
Push
kgf
Pull
kgf
Push
kgf
Pull
kgf
25164.912.01245.47144.92490.94289.85785.50463.76981.88579.70
32208.043.14402.18245.08804.35490.151286.96784.241608.70980.30
402512.574.91628.40382.931256.80765.862010.881225.382513.601531.73
503219.648.04981.88579.701963.751159.403142.001855.043927.502318.80
633531.189.621558.821077.713117.652155.414988.243448.666235.304310.82
804550.2715.912513.601718.285027.203436.568043.525498.5010054.406873.13
1005678.5524.633927.502695.847855.005391.6712568.008626.6815710.0010783.34

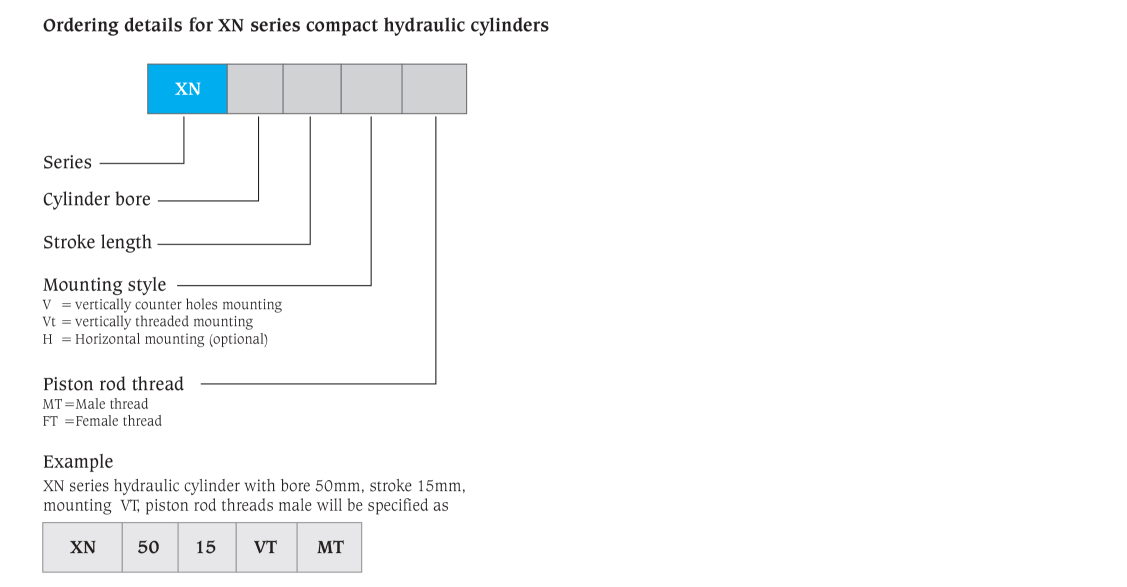

Features

  • Male/female threaded piston rod also available
  • Can be mounted vertically or horizontally
  • Bore sizes: 25 mm to 100 mm
  • Strokes available in 5 mm to 50 mm stroke lengths only
  • Maximum working pressure: 200 bar
  • Operating temperature range: -20 °C to +80 °C
  • Non-cushioned
Piston DiaØ25Ø32Ø40Ø50Ø63Ø80Ø100
Rod DiaØ16Ø20Ø25Ø32Ø35Ø45Ø56
A × PitchM12×1.25PM16×1.5PM20×1.5PM24×2PM27×2PM33×2PM42×2P
B × Pitch × DeepM10×1.5P×15M12×1.75P×15M16×2P×25M20×2.5P×30M24×3P×35M30×3.5P×40M42×2P×40
T × Pitch × DeepM10×1.5P×15M12×1.75P×15M12×1.75P×15M16×2P×20M20×2.5P×22M24×3P×25M30×3.5P×32
H6065717686100110
H1474344505663NA
H28111111131515
H316202832364556
H426272932353540
H511131312152020
G BSP1/4"1/4"1/4"1/4"1/4"1/2"1/2"
W657585100125160170
W15055627695120120
W24555637595120150
W3303540456580110
A/F13172126304150
ØN9111111182226
ØM × Deep14×1017×1117×1120×1326×1833×2230×26

All dimensions are in millimeters unless otherwise stated.
