Cylinder selection guide
| Operating pressure at kg/sq. cm | Theoretical forces (at mechanical efficiency = 100%) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 80 | 100 | 160 | ||||||||
| Piston dia mm | Rod dia mm | Piston area sq. cm | Rod area sq. cm | Push kgf | Pull kgf | Push kgf | Pull kgf | Push kgf | Pull kgf | Push kgf | Pull kgf |
| 40 | 25 | 12.57 | 4.91 | 628.4 | 382.93 | 1005.44 | 612.69 | 1256.8 | 765.86 | 2010.88 | 1225.38 |
| 50 | 32 | 19.64 | 8.04 | 981.88 | 579.70 | 1571.00 | 927.52 | 1963.75 | 1159.40 | 3142 | 1855.04 |
| 63 | 40 | 31.18 | 12.57 | 1558.82 | 930.42 | 2494.12 | 1488.68 | 3117.65 | 1860.85 | 4988.24 | 2977.36 |
| 80 | 45 | 50.27 | 15.91 | 2513.6 | 1718.28 | 4021.76 | 2749.25 | 5027.2 | 3436.56 | 8043.52 | 5498.50 |
| 100 | 50 | 78.55 | 19.64 | 3927.5 | 2945.63 | 6284 | 4713.00 | 7855 | 5891.25 | 12568 | 9426.00 |

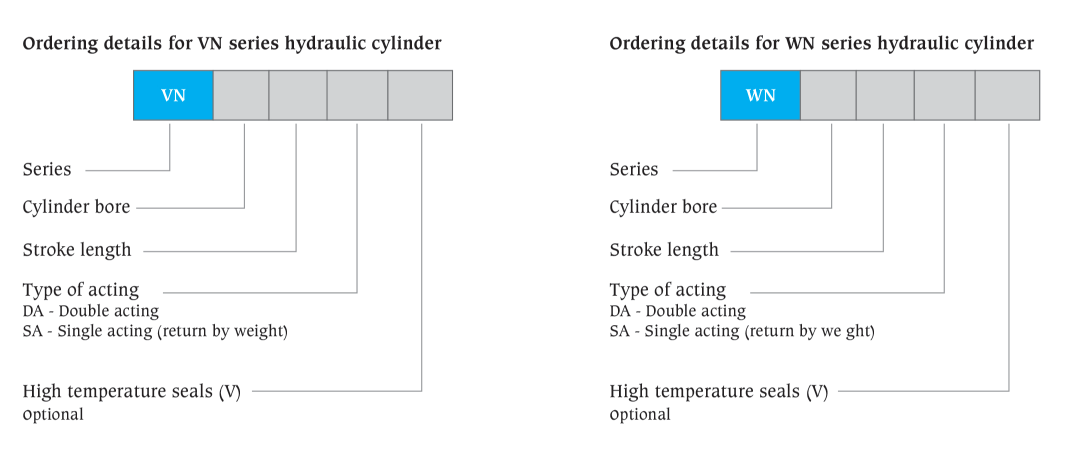

Features and specifications
- Low-cost cylinder
- Thoroughly tested to our standard quality and performance
- Double acting & single acting versions
- Bore sizes: 40mm to 100mm
- Stroke available in up to 1000mm stroke length
- Single rod design
- Ideal for construction, agriculture, and other industrials
- Maximum working pressure: 160 bar
- Piston rods: Precision-ground and hard chrome-plated
- Non-cushioned
- Temperature range:
- -20 °C to +80 °C (standard)
- -20 °C to 150 °C (optional)
- Standard fluid: Mineral oil DIN 51524 (HL, HLP)
- Seal types suitable for a wide variety of operating environments

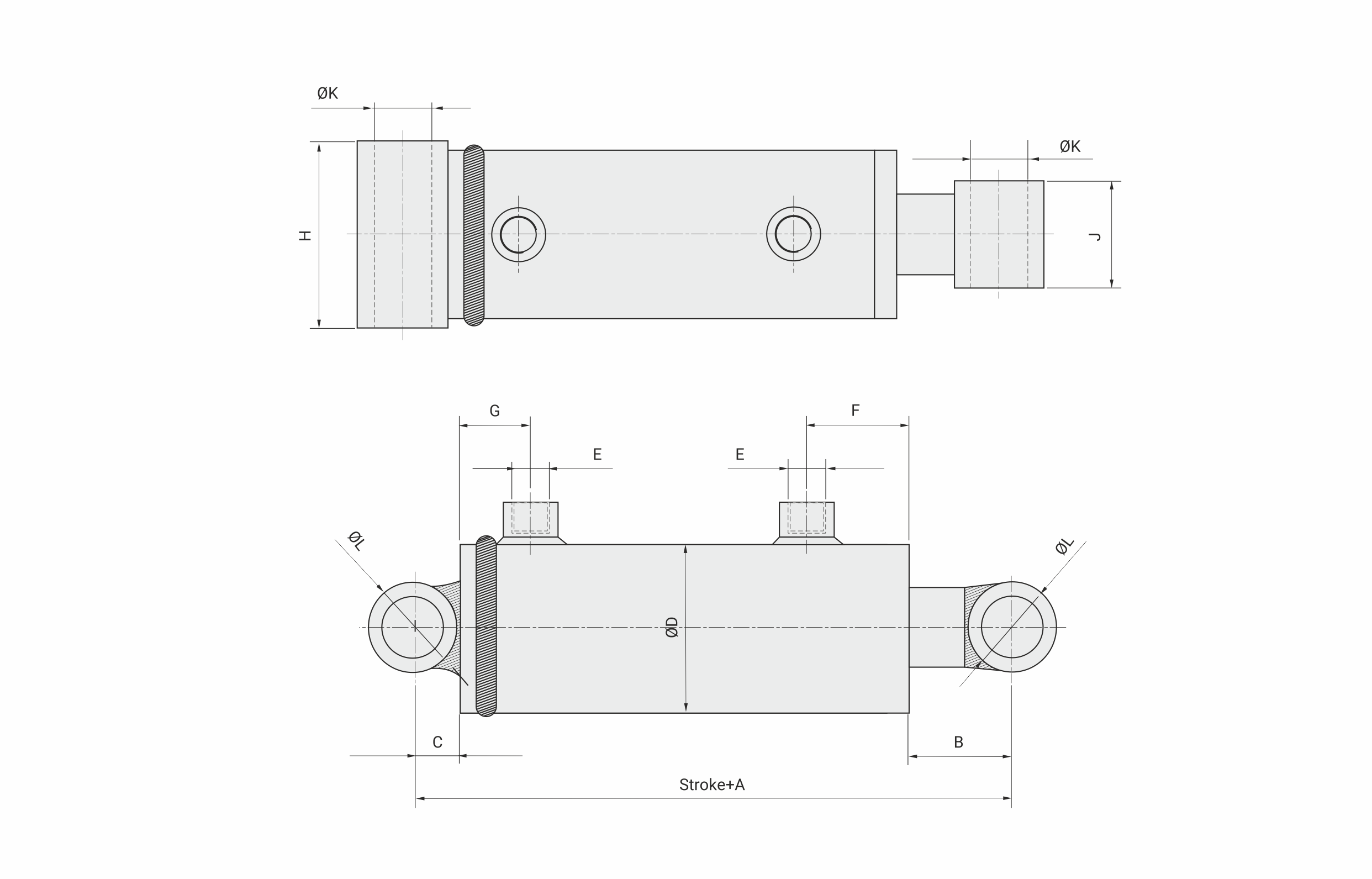

| Piston Ø | Rod Ø | A | B | C | D Ø | E BSP | F | G | H | I | K Ø | L Ø |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 40 | 25 | 175 | 40 | 16 | 50 | 3/8" | 49 | 24 | 55 | 50 | 20 | 32 |
| 50 | 32 | 185 | 45 | 19 | 60 | 3/8" | 49 | 24 | 70 | 55 | 25 | 38 |
| 63 | 40 | 201 | 45 | 19 | 73 | 3/8" | 54 | 24 | 80 | 55 | 25 | 38 |
| 80 | 45 | 232 | 60 | 25 | 94 | 1/2" | 60 | 30 | 100 | 65 | 32 | 50 |
| 100 | 50 | 252 | 70 | 28 | 114 | 1/2" | 65 | 32 | 120 | 70 | 38 | 56 |
All dimensions are in millimeters unless otherwise stated.
Features and specifications
- Low-cost cylinder
- Thoroughly tested to our standard quality and performance
- Double-acting and single acting versions
- Bore sizes: 40mm to 100mm
- Stroke available in up to 1000mm stroke length
- Single rod designs
- Ideal for construction, agriculture, and other industrials
- Maximum presure - 160 bar
- Piston rods: Precision-ground and hard chrome-plated
- Non-cushioned
- Temperature range:
- -20 °C to +80 °C (standard)
- -20 °C to 150 °C (optional)
- Standard fluid: Mineral oil DIN 51524 (HL, HLP)
- Seal types to suit a wide variety of operating environments

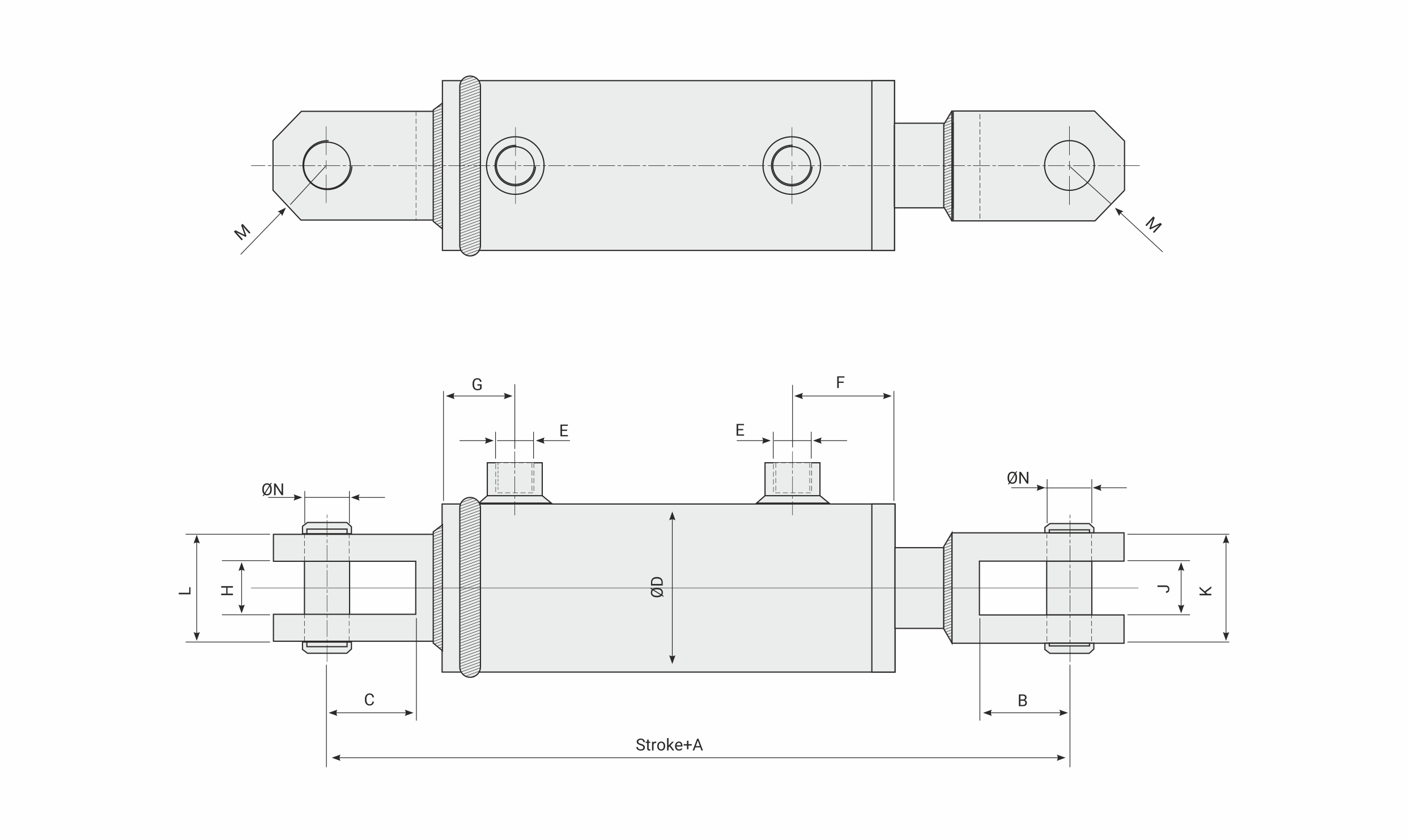

| Piston Ø | Rod Ø | A | B | C | D Ø | E BSP | F | G | H | J | K | L | M | N Ø |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 40 | 25 | 213 | 30 | 30 | 50 | 3/8" | 49 | 24 | 20 | 20 | 40 | 40 | 23 | 16 |
| 50 | 32 | 239 | 40 | 40 | 60 | 3/8" | 49 | 24 | 25 | 25 | 49 | 49 | 28 | 20 |
| 63 | 40 | 267 | 40 | 40 | 73 | 3/8" | 54 | 24 | 25 | 25 | 49 | 49 | 28 | 20 |
| 80 | 45 | 312 | 50 | 50 | 94 | 1/2" | 60 | 30 | 30 | 30 | 60 | 60 | 32 | 25 |
| 100 | 50 | 326 | 50 | 50 | 114 | 1/2" | 65 | 32 | 30 | 30 | 60 | 60 | 32 | 25 |
