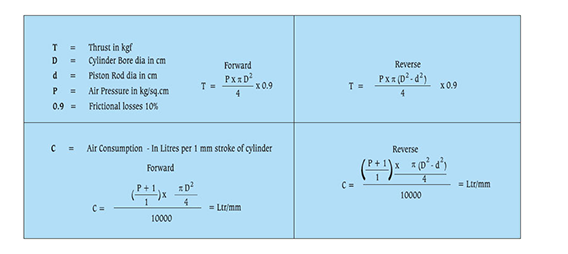

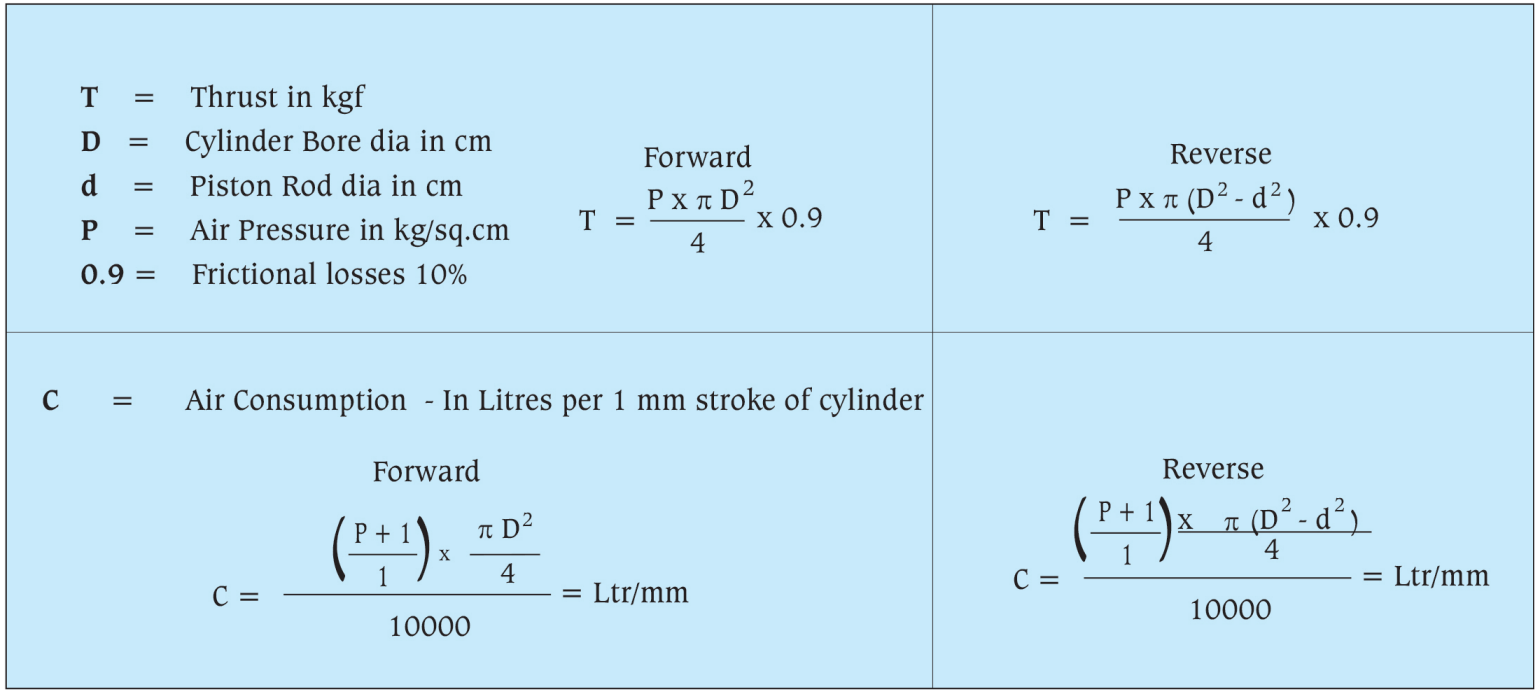

Thrust & Air Consumption Charts

Air Pressure (kg/sq. cm) Cylinder Size (mm)	Thrust	3 kg/sq.cm Air Consumption	Thrust	5 kg/sq.cm Air Consumption	Thrust	7 kg/sq.cm Air Consumption	Thrust	10 kg/sq.cm Air Consumption
Piston Dia x Rod Dia	kgf	in Ltr/mm Stroke	kgf	in Ltr/mm Stroke	kgf	in Ltr/mm Stroke	kgf	in Ltr/mm Stroke
32 x 12
Forward	21.70	0.00322	36.18	0.00483	50.65	0.00643	72.36	0.0088
Reverse	18.66	0.00244	31.09	0.00415	43.53	0.00553	62.19	0.0076
40 x 16
Forward	33.92	0.00503	56.57	0.00754	79.20	0.01006	113.11	0.01383
Reverse	28.50	0.00422	47.50	0.00635	66.50	0.00844	95.01	0.01161
50 x 20
Forward	53.00	0.0078	88.37	0.01178	123.71	0.0157	176.73	0.0216
Reverse	44.54	0.0066	74.23	0.0099	103.92	0.0132	148.46	0.0181
63 x 20
Forward	84.14	0.0125	140.29	0.0187	196.41	0.02494	280.58	0.03429
Reverse	75.69	0.0112	126.14	0.0168	176.60	0.02243	252.30	0.03083
80 x 25
Forward	135.73	0.0201	226.22	0.03015	316.71	0.0402	452.45	0.0553
Reverse	122.47	0.0181	204.12	0.02722	285.77	0.0362	408.26	0.0499
100 x 25
Forward	212.00	0.0314	353.48	0.04713	494.87	0.0628	706.95	0.0864
Reverse	198.80	0.0295	331.38	0.04418	463.93	0.0589	662.76	0.0810

Note: Subject to change without prior notice

Air pressure (kg/cm²) Cylinder size (mm)	Thrust	3 kg/cm² Air consumption	Thrust	5 kg/cm² Air consumption	Thrust	7 kg/cm² Air consumption	Thrust	10 kg/cm² Air consumption
Piston dia x Rod dia	Thrust kgf	in Ltr./mm stroke	Thrust kgf	in Ltr./mm stroke	Thrust kgf	in Ltr./mm stroke	Thrust kgf	in Ltr./mm stroke
125 x 35
Forward	331.38	0.04909	552.30	0.0736	773.22	0.09818	1104.60	0.13500
Reverse	305.40	0.04524	509.00	0.06786	712.60	0.09048	1018.00	0.12442
150 x 35
Forward	477.19	0.07069	795.31	0.10604	1113.44	0.14139	1590.63	0.19441
Reverse	451.21	0.06684	752.01	0.10026	1052.82	0.13369	1504.03	0.18383
203.2 x 45
Forward	875.70	0.12973	1459.50	0.19460	2043.30	0.25946	2919.01	0.35676
Reverse	832.75	0.12337	1387.92	0.185057	1943.09	0.24674	2775.85	0.33927
254 x 57
Forward	1368.28	0.20270	2280.47	0.30406	3192.67	0.40541	4560.95	0.55745
Reverse	1299.38	0.19250	2165.63	0.28875	3031.88	0.38500	4331.26	0.52937
304.8 x 57
Forward	1970.33	0.29186	3283.88	0.43785	4597.42	0.58380	6567.77	0.80272
Reverse	1901.42	0.28169	3169.04	0.42253	4436.66	0.56338	6338.09	0.77465

Note: Subject to change without prior notice
