Stroke Adjustable Air Cylinders
Product details
| Order Code | Heavy duty cylinder + piston dia + stroke length + end cushioning + mounting |
| Medium | Compressed air, filtered, lubricated |
| Design | Piston cylinder |
| Max. operating pressure | 12 Bar |
| Operating temperature | -20°C to + 80°C |
| Material | End caps : C.I. Barrel – seamless honed & hard chrome plated |

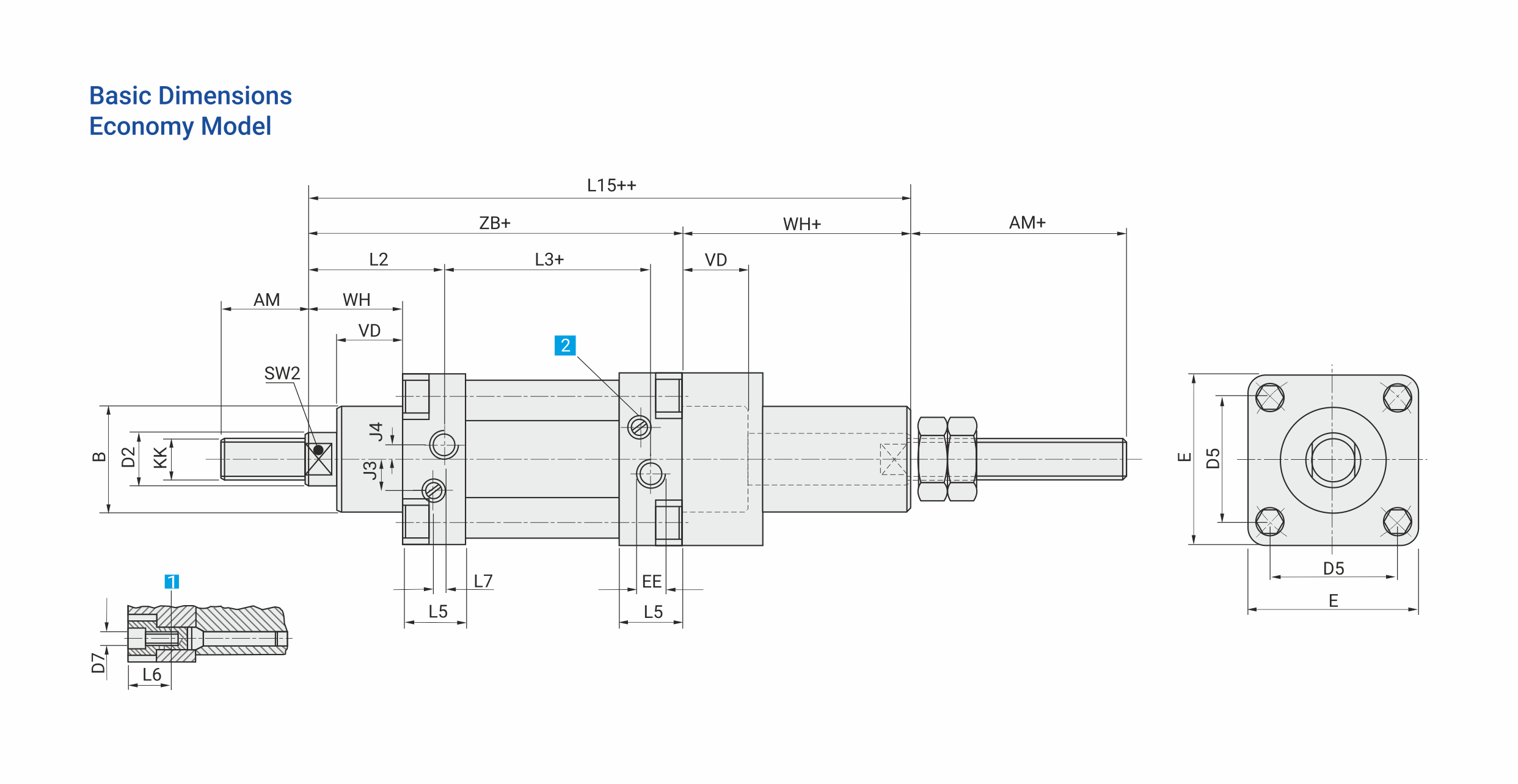

| Bore Size | AM | B | D2 | D5 | D7 | E | EE BSP | J3 | J4 | KK THD'S | L2 | L3 | L5 | L6 | L7 | SW2 | VD | WH | ZB | L15 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 32 | 22 | 30 | 12 | 32.5 | M5 | 45 | G1/8M | 7 | _ | M10 x 1.25 | 35.0 | 76 | 26.0 | 15 | 9.5 | 10 | 16 | 26 | 120 | 146 |
| 150mm | 176.5 | 51 | 8 | 68 | 42.5 | 1/2- | 59.0 | 50.0 | 35 | 75.0 | 85 | M27 x 2P | 32.5 | 130 | 165 | M16 x 2P | 236 | |||
| 8°C | 210.0 | 55 | 12 | 72 | 48.0 | 3/4- | 63.0 | 60.0 | 45 | 81.0 | 111 | M38 x 2P | 35.0 | 168 | 216 | M20 x 2.5P | 273 | |||
| 10°mm | 248.0 | 76 | 10 | 165 | 22.0 | 3/4- | 48.0 | 80.0 | 57 | 76.0 | 144 | M50 x 2P | 48.0 | 210 | 267 | M24 x 3P | 296 | |||
| 12°C | 289.0 | 76 | 13 | 183 | 28.0 | 1- | 60.0 | 95.0 | 57 | 89.0 | 171 | M50 x 2P | 54.5 | 246 | 325 | M24 x 3P | 349 | |||
| 14°C | 289.0 | 76 | 13 | 183 | 28.0 | 1- | 60.0 | 95.0 | 57 | 89.0 | 171 | M50 x 2P | 54.5 | 292 | 375 | M24 x 3P | 349 |
