Model:- OG-01/OG-02

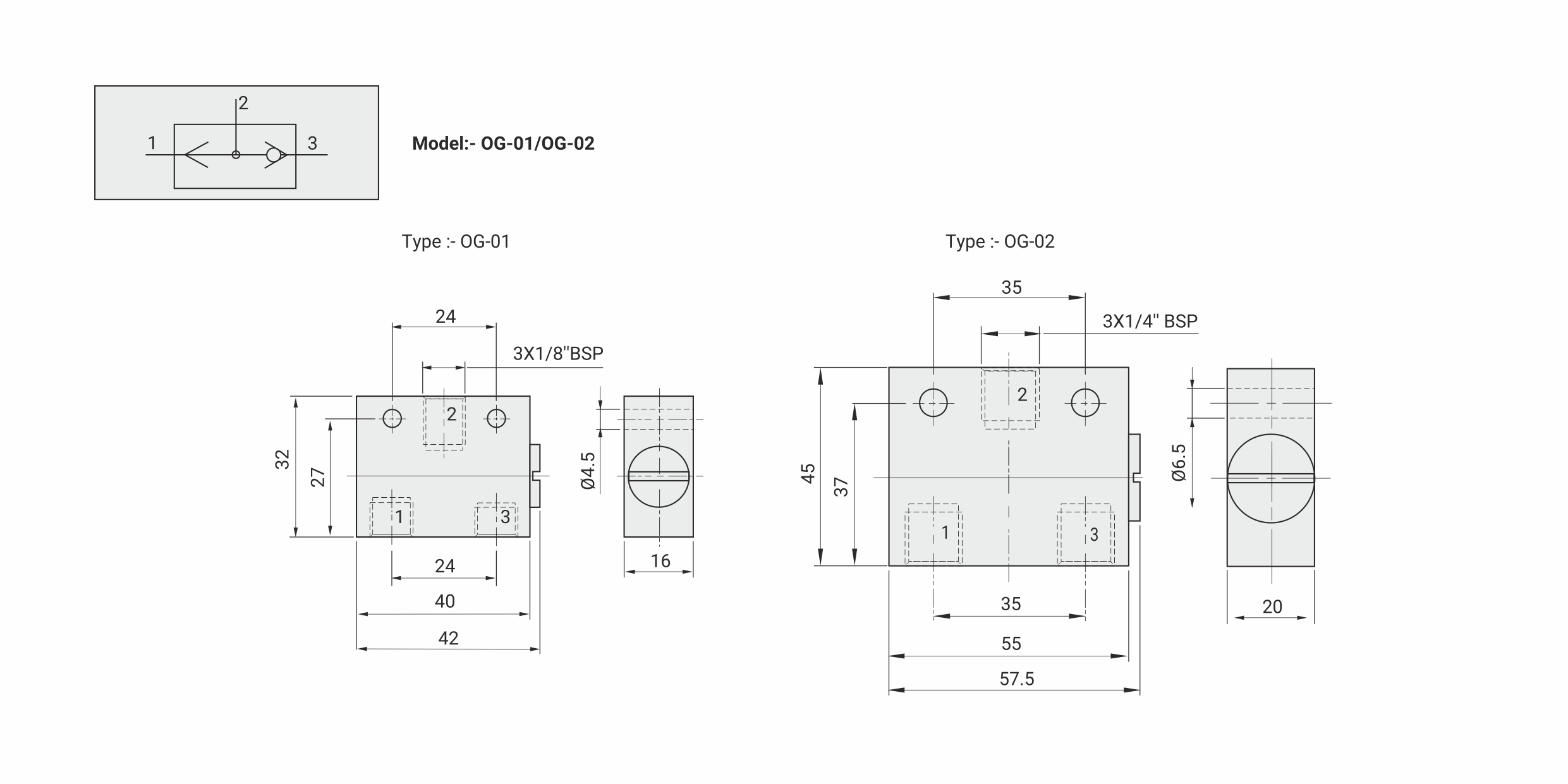

Basic Dimenstons
Features
The shuttle valve has two inlets (1,3) and one outlet (2). The Valve automatically blocks the inlet which is not pressurised. If both inlets are pressurised simultaneously, the higher pressure is swicthed to outlet (1).
Application
This unit allows for the ‘OR’ function. i.e. an output signal is present provided that at least one input signal is present. ‘OR’ gates are used to control cylinders or valves from various positions and for ‘OR’ logic circuits.
Technical Specifications
| Feature | Value | |
|---|---|---|
| Type | OG-01 | OG-02 |
| Medium | Compressed air (Filtered & lubricated) | |
| Design | 'OR' gate (shuttle valve) | |
| Mounting | Through holes in housing | |
| Connection | 1/8"BSP | 1/4"BSP |
| Orifice size | 4.0mm | 7.0mm |
| Standard nominal flow rate | 500 LPM | 1170 LPM |
| Pressure range | 0 to 10 bar | |
| temperature range | -10 °C to + 60 °C | |
| Material | Aluminium, Nitrile, Delrin, Brass | |
All dimensions in mm unless otherwise specified
Note: Subject to change without prior notice
