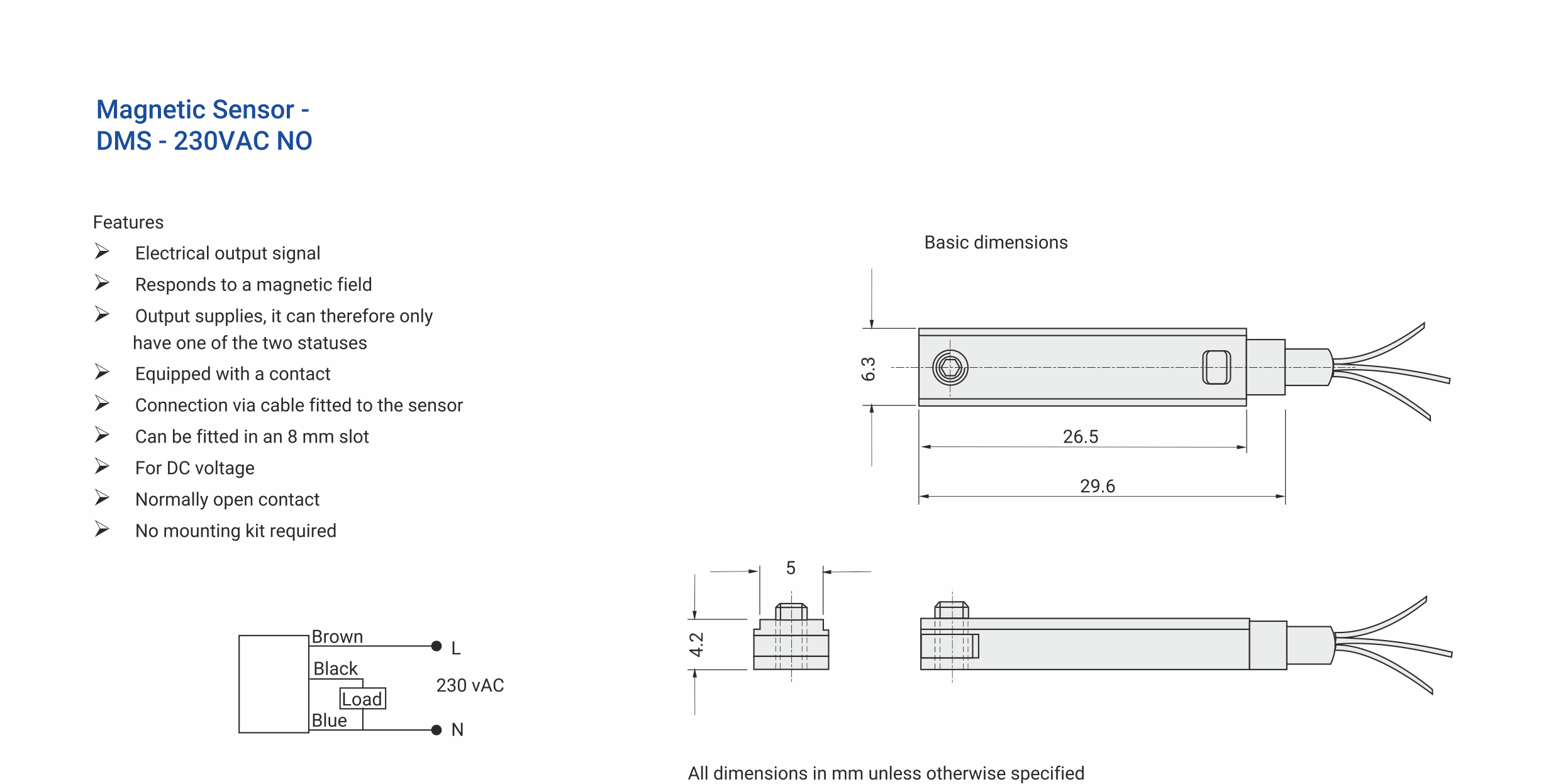

Application
The proximity sensors are used for contactless Indication with Deluxe (DCP) cylinders having a sensor grove. It emits an electrical signal when a magnetic field approaches. The switching status is indicated by a red light emitting diode.
Technical Specifications
| Feature | Value |
|---|---|
| Medium | Magnetic field & electric current |
| Design | Electric signal |
| Function on actuation | N/O Contact |
| Size of sensor | 8 |
| Switching accuracy | 0.1mm |
| Ambient temperature min. standard | -30 °C |
| Ambient temperature max. standard | 60 °C |
| Ambient temperature max. screwed in | -5 °C |
| Ambient temperature max. | 60 °C |
| Connection type elec. | Cable |
| Number of cores | 3 |
| Cable length | 2500mm |
| Number of pins, plug connections | 3 |
| Operating status display | Red LED |
| Type of mounting | Clamping in Sensor Slot |
| Product weight | 25gm |
| Type of voltage | DC / AC |
| Nominal operating voltage (DC) | 230V |
| Operating voltage min. (DC) | 3V |
| Operating voltage max. (DC) | 250V |
| Nominal operating voltage (AC) | 230V |
Note: Subject to change without prior notice
