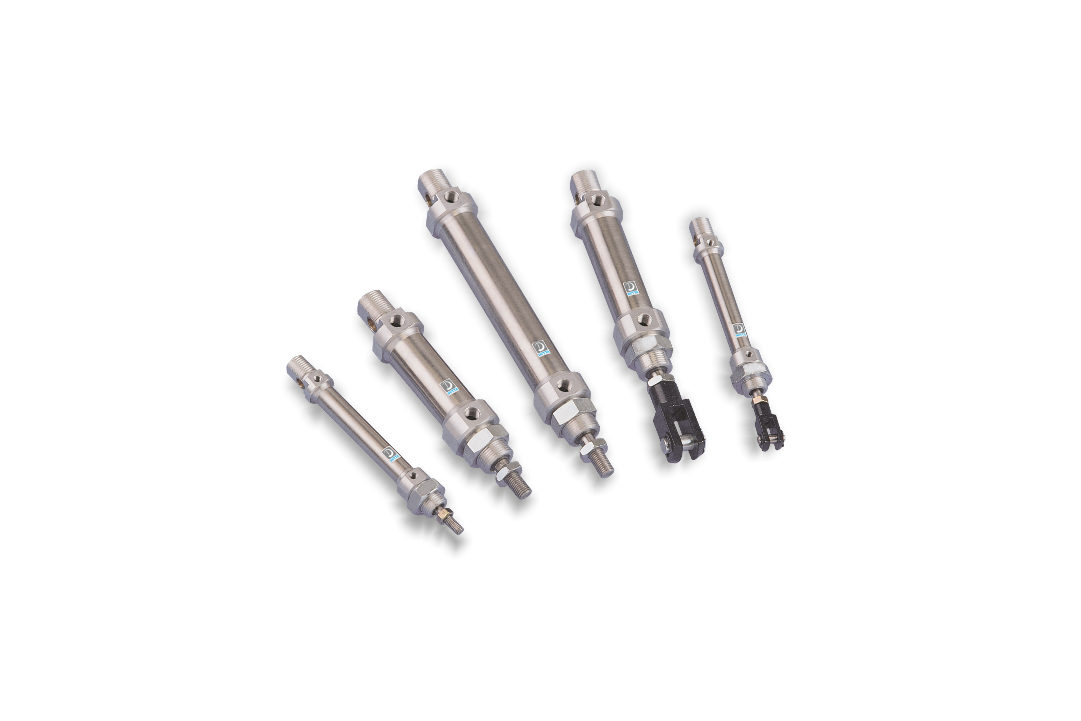

ISO-6432 Miniature Air Cylinders
Product details
| Piston Nominal Size (mm) | 12, 16, 20, 25 |
| Medium | Compressed air (filtered, lubricated) |
| Design | Piston cylinder |
| Mode of Operation | Double-acting / Single-acting |
| Sensing Type | None |
| Type of Cushioning | Internal cushioning ring (Non-adjustable) |
| Operating Pressure Min. | 1 Bar |
| Operating Pressure Max. | 10 Bar |
| Min. Ambient Temperature | -20°C |
| Max. Ambient Temperature | 80°C |
| Material | End caps: Aluminium; Barrel: Stainless steel; Piston rod: S.S. 410 roller burnished / EN8 hard chrome plated; Seals: Polyurethane |
In accordance with standard ISO 6432 Bore sizes dia 12, 16, 20, 25 mm Wide variety of mountings and accessories High finish cylinder barrel and piston rod Low friction and long life

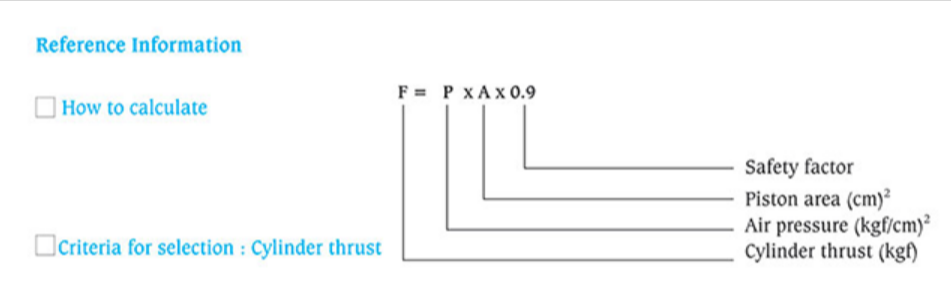

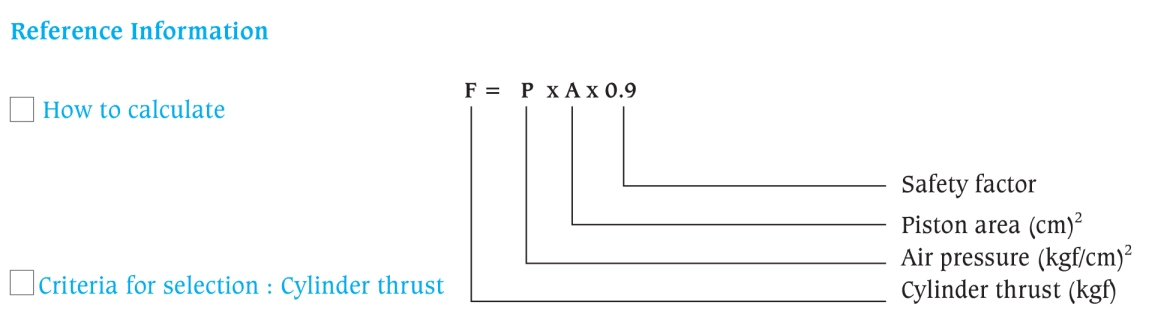

| Bore size (mm) | Rod size (mm) | Acting type | Side | Pressure area (cm²) | Operating pressure (kg/cm²) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | |||||
| Ø12 | Ø6 | Double acting | Push side | 1.017 | 1.017 | 2.034 | 3.06 | 4.068 | 5.085 | 6.10 | 7.11 | - | - |
| Pull side | 0.765 | 0.765 | 1.53 | 2.025 | 3.06 | 3.825 | 4.59 | 5.35 | - | - | |||
| Ø16 | Ø6 | Double acting | Push side | 1.80 | 1.80 | 3.61 | 5.42 | 7.23 | 9.05 | 10.85 | 12.66 | - | - |
| Pull side | 1.62 | 1.62 | 3.25 | 4.88 | 6.51 | 8.14 | 9.76 | 11.40 | - | - | |||
| Ø20 | Ø8 | Double acting | Push side | 2.82 | 2.82 | 5.65 | 8.46 | 11.30 | 14.13 | 16.95 | 19.78 | 22.60 | 25.43 |
| Pull side | 2.37 | 2.37 | 4.75 | 7.10 | 9.50 | 11.88 | 14.25 | 16.63 | 19.00 | 21.38 | |||
| Ø25 | Ø10 | Double acting | Push side | 4.41 | 4.41 | 8.82 | 13.23 | 17.64 | 22.00 | 26.46 | 30.87 | 35.30 | 39.69 |
| Pull side | 3.70 | 3.70 | 7.41 | 11.36 | 14.83 | 18.50 | 22.24 | 25.95 | 29.66 | 33.37 | |||

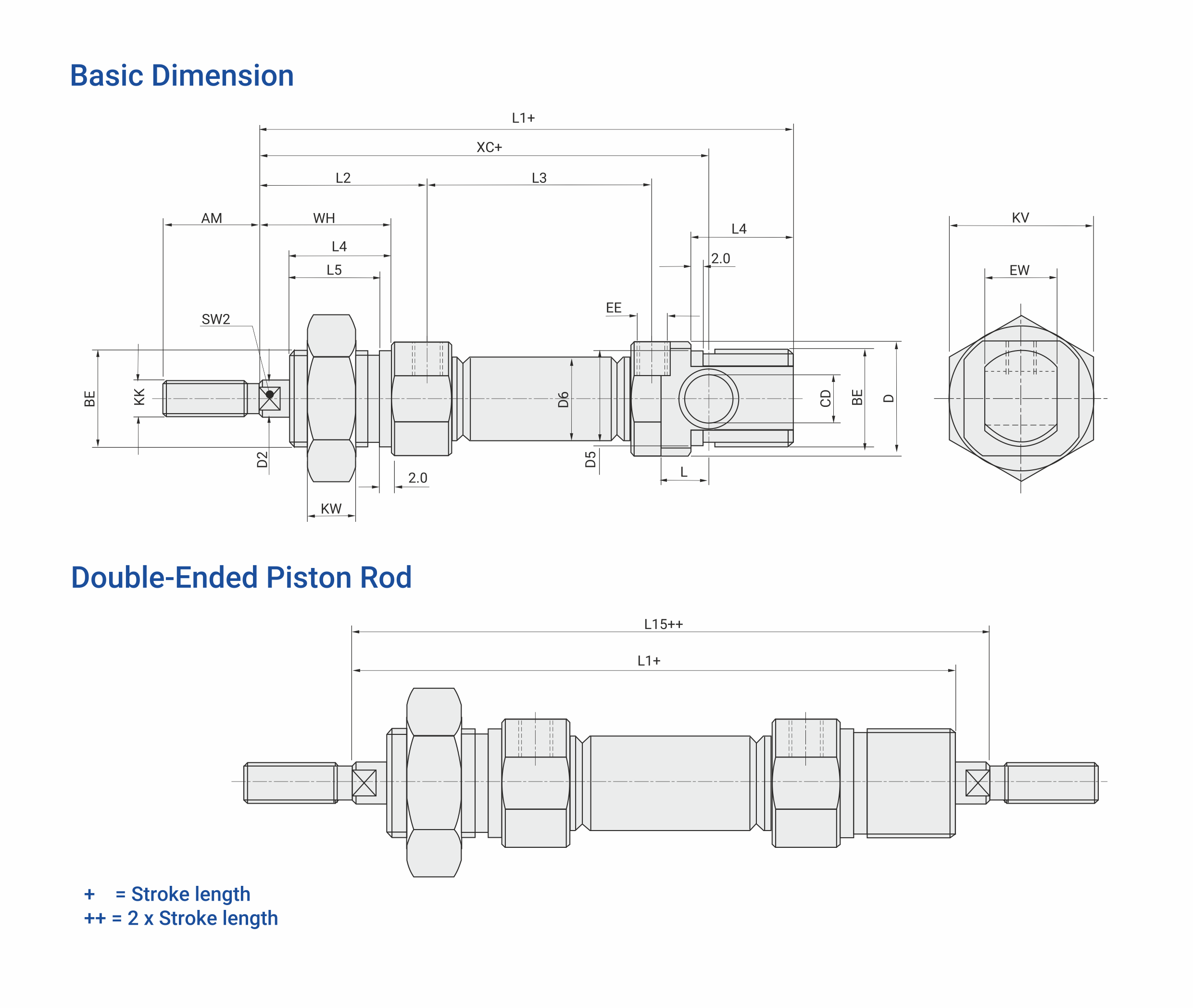

| Piston dia. mm | AM | BE | Ø CD | D | Ø D2 | Ø D5 | Ø D6 | EE | EW | KK |
|---|---|---|---|---|---|---|---|---|---|---|
| Ø12 | 16 | M16 x 1.5P | 6 | 19 | 6 | 16 | 14 | M5 x 0.8P | 12 | M6 x 1P |
| Ø16 | 16 | M16 x 1.5P | 6 | 19 | 6 | 16 | 18 | M5 x 0.8P | 12 | M6 x 1P |
| Ø20 | 20 | M22 x 1.5P | 8 | 25 | 8 | 22 | 22 | 1/8 BSP | 16 | M8 x 1.25P |
| Ø25 | 22 | M22 x 1.5P | 8 | 32 | 10 | 22 | 27 | 1/8 BSP | 16 | M10 x 1.25P |
| Piston dia. mm | KV | KW | L | L1 | L2 | L3 | L4 | L5 | L15 | SW 2 | WH | XC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ø12 | 24 | 8 | 8 | 89.0 | 28.0 | 38.0 | 17 | 15 | 94.0 | 5 | 22 | 75.0 |
| Ø16 | 24 | 8 | 9 | 95.0 | 28.0 | 44.0 | 17 | 15 | 100.0 | 5 | 22 | 82.0 |
| Ø20 | 32 | 11 | 12 | 112.5 | 32.5 | 51.5 | 20 | 18 | 116.5 | 7 | 24 | 95.5 |
| Ø25 | 32 | 11 | 12 | 119.6 | 36.0 | 53.6 | 22 | 20 | 124.6 | 9 | 28 | 104.0 |
