| Type | ISO Economy - Non-proximity Sensing |
|---|---|
| Order Code | ISO Eco. + Piston dia + Stroke length + End position cushioning + Mounting |
| Medium | Compressed air, (Filltered & Lubricated) |
| Design | Piston Cylinder |
| Max. Operating Pressure | 12 Bar |
| Operating Temperature | -20 °C to +80 °C |
| Range of Piston Dia | 32 to 100 mm |
| Construction |
|

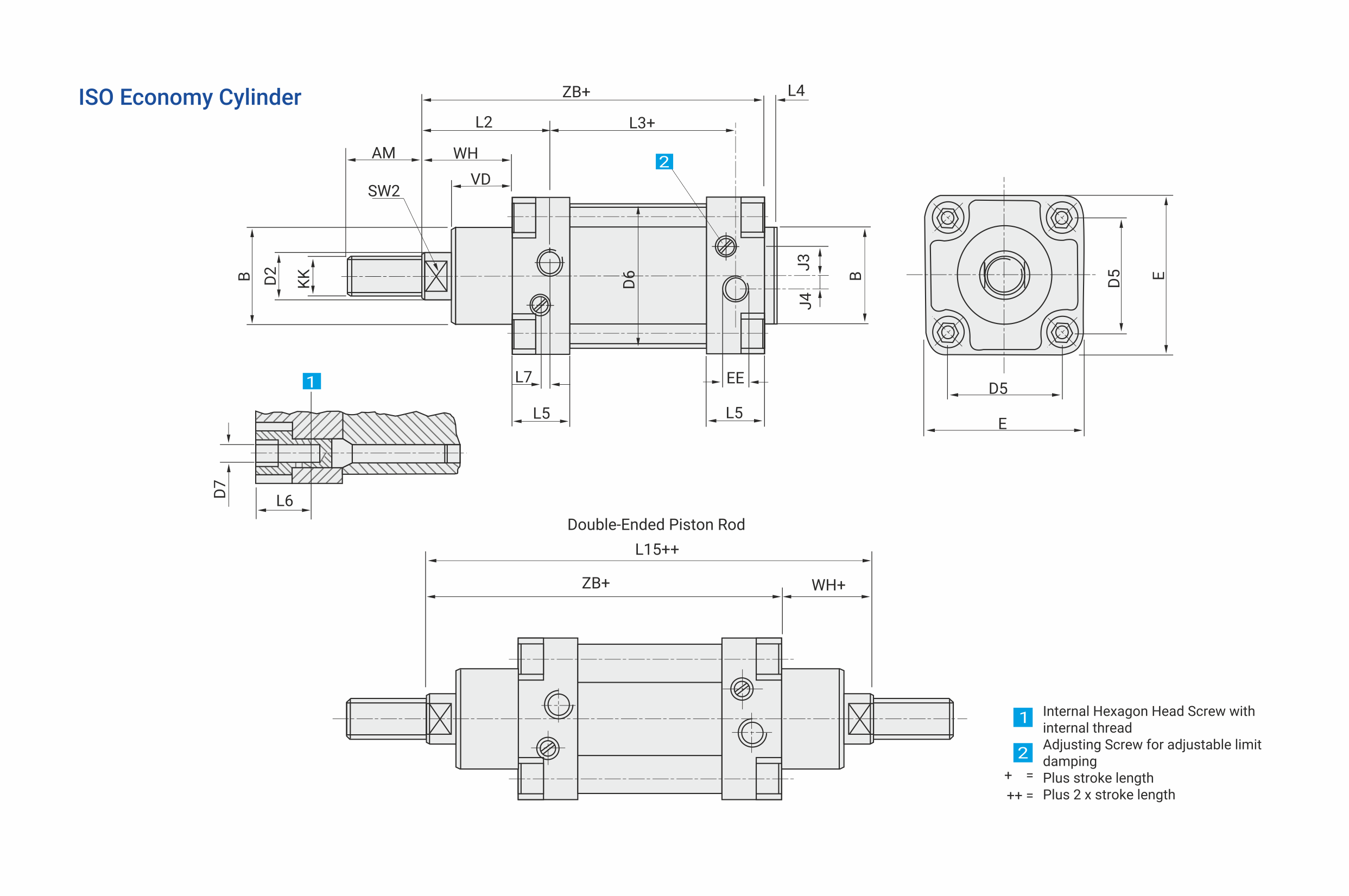

Basic Dimensions
All dimensions in mm unless otherwise specified
| Piston dia | AM | B Ø | D2 Ø | D5 | D7 | E | EE BSP | J3 | J4 | KK | L2 | L3 | L4 | L5 | L6 | L7 | L15 | SW2 | VD | WH | ZB |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 32 | 22 | 30 | 12 | 32.5 | M5 x 0.8 | 45 | G1/8" | 7 | - - | M10 x 1.25 | 35 | 76 | 4 | 26 | 15 | 9.5 | 146 | 10 | 16 | 26 | 120 |
| 40 | 24 | 35 | 16 | 39.6 | M5 x 0.8 | 54 | G1/4" | 9.6 | 4.5 | M12 x 1.25 | 43 | 79 | 5.5 | 26 | 15 | 3.0 | 165 | 13 | 20 | 30 | 135 |
| 50 | 32 | 40 | 20 | 48.0 | M8 x 1.25 | 65 | G1/4" | 12 | 5.5 | M16 x 1.5 | 49 | 84 | 5 | 24 | 14 | 4.0 | 179 | 17 | 25 | 37 | 142 |
| 63 | 32 | 42 | 20 | 59.4 | M8 x 1.25 | 80 | G3/8" | 13 | 11.5 | M16 x 1.5 | 54 | 87 | 6 | 28.5 | 14 | _ | 195 | 17 | 28 | 40 | 155 |
| 80 | 40 | 48 | 25 | 70.7 | M8 x 1.25 | 96 | G3/8" | 17 | 16 | M20 x 1.5 | 63 | 96 | 6 | 27 | 17 | _ | 220 | 22 | 34 | 49 | 171 |
| 100 | 40 | 52 | 25 | 93.3 | M10 x 1.5 | 126 | G1/2" | 17.5 | 18 | M20 x 1.5 | 69.5 | 101 | 7 | 32.5 | 17 | _ | 240 | 22 | 40 | 53 | 187 |
Note: Frictionless cylinders can be supplied on request.
Note: Subject to change without prior notice
