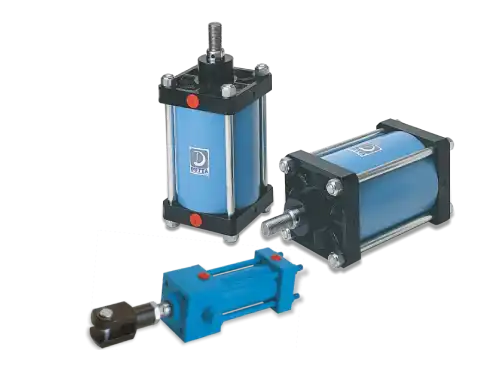

Heavy Duty Air Cylinders
Product details
| Order Code | Heavy duty cylinder + piston dia + stroke length + end cushioning + mounting |
| Medium | Compressed air, filtered, lubricated |
| Design | Piston cylinder |
| Max. operating pressure | 12 Bar |
| Operating temperature | -20°C to + 80°C |
| Material | End caps : C.I. Barrel – seamless honed & hard chrome plated |
Our Pneumatic cylinders are designed for high-efficiency applications where precise
speed control, reliability, and low-maintenance are crucial. These cylinders offer smooth, controlled motion with superior
air-tight sealing and minimal air consumption.
Precision engineering ensures consistency and responsiveness, making them ideal for automation, material handling,
and various manufacturing processes. With robust construction and a versatile range of configurations, they are built to
perform in both standard and challenging environments, offering flexibility and reliability.

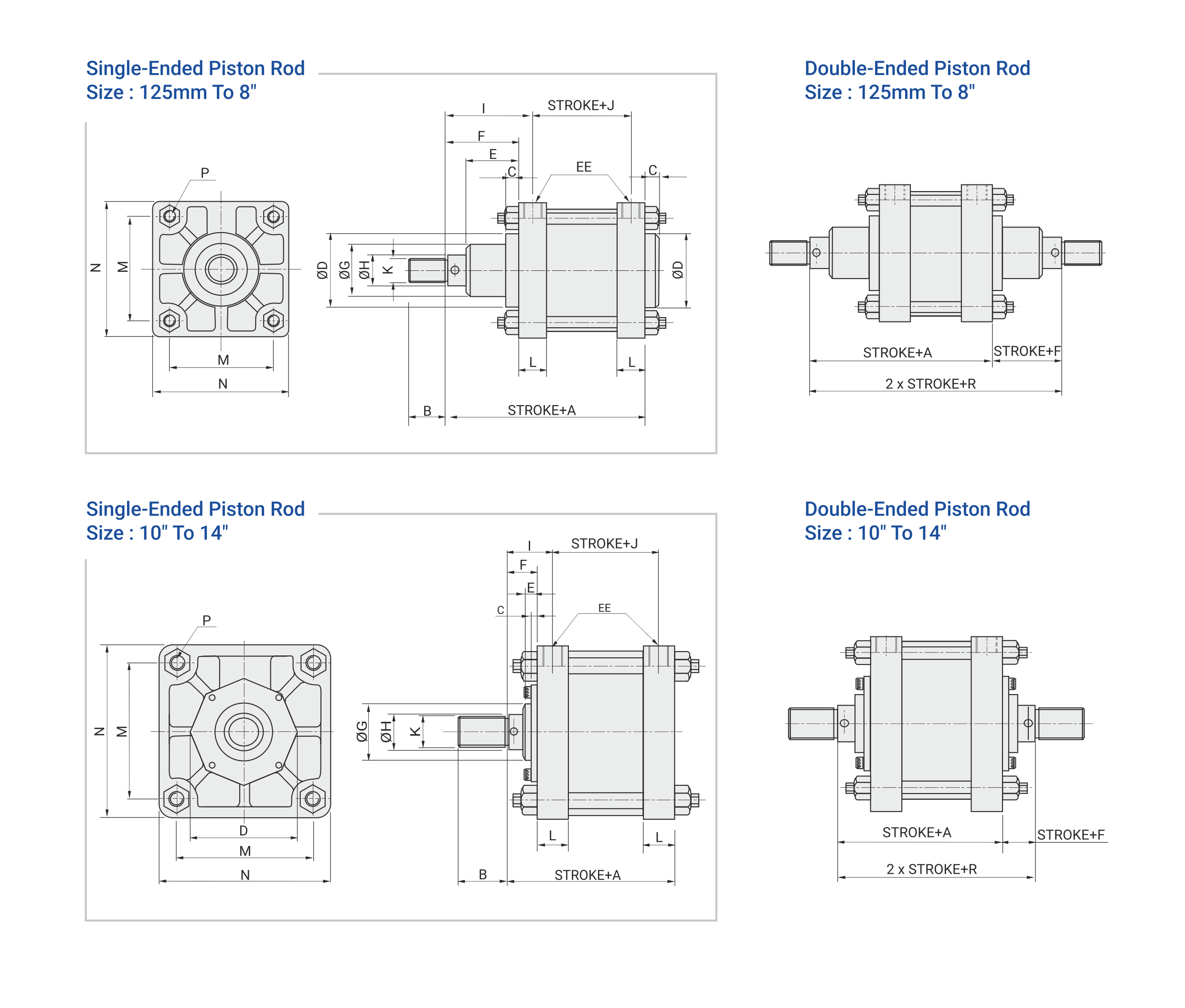

| Bore size | A | B | C | D | E | EE BSP | F | G⌀ | H⌀ | I | J | K tdD's | L | M | N | P tTD | R |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 125mm | 172.0 | 51 | 12 | 64 | 47.0 | 3/8- | 64.0 | 50.0 | 35 | 80.0 | 76 | M27 x 2P | 28.0 | 108 | 140 | M12 x 1.76P | 236 |
| 150mm | 176.5 | 51 | 8 | 68 | 42.5 | 1/2- | 59.0 | 50.0 | 35 | 75.0 | 85 | M27 x 2P | 32.5 | 130 | 165 | M16 x 2P | 236 |
| 8°C | 210.0 | 55 | 12 | 72 | 48.0 | 3/4- | 63.0 | 60.0 | 45 | 81.0 | 111 | M38 x 2P | 35.0 | 168 | 216 | M20 x 2.5P | 273 |
| 10°mm | 248.0 | 76 | 10 | 165 | 22.0 | 3/4- | 48.0 | 80.0 | 57 | 76.0 | 144 | M50 x 2P | 48.0 | 210 | 267 | M24 x 3P | 296 |
| 12°C | 289.0 | 76 | 13 | 183 | 28.0 | 1- | 60.0 | 95.0 | 57 | 89.0 | 171 | M50 x 2P | 54.5 | 246 | 325 | M24 x 3P | 349 |
| 14°C | 289.0 | 76 | 13 | 183 | 28.0 | 1- | 60.0 | 95.0 | 57 | 89.0 | 171 | M50 x 2P | 54.5 | 292 | 375 | M24 x 3P | 349 |
