For any kind of air-actuated equipment, there is usually a specific pressure which leads to the efficient operation of the equipment. At a higher pressure, the equipment will wear out excessively with no significant increase in the output and the compressed air will be wasted. Hence, while choosing an air pressure regulator, its features and flow rates must be carefully taken into account.
This diaphragm-operated, self-relieving type air pressure regulator, having a large flow capacity, maintains constant downstream air pressure inspite of fluctuations in the input pressure. The self-relieving feature of the regulator does not strain the downstream pipeline. The ergonomically designed pressure adjusting knob facilitates effortless operation of the regulator. ‘The Push-to-Lock’ knob helps in locking the regulator at a predetermined or desired output air pressure.

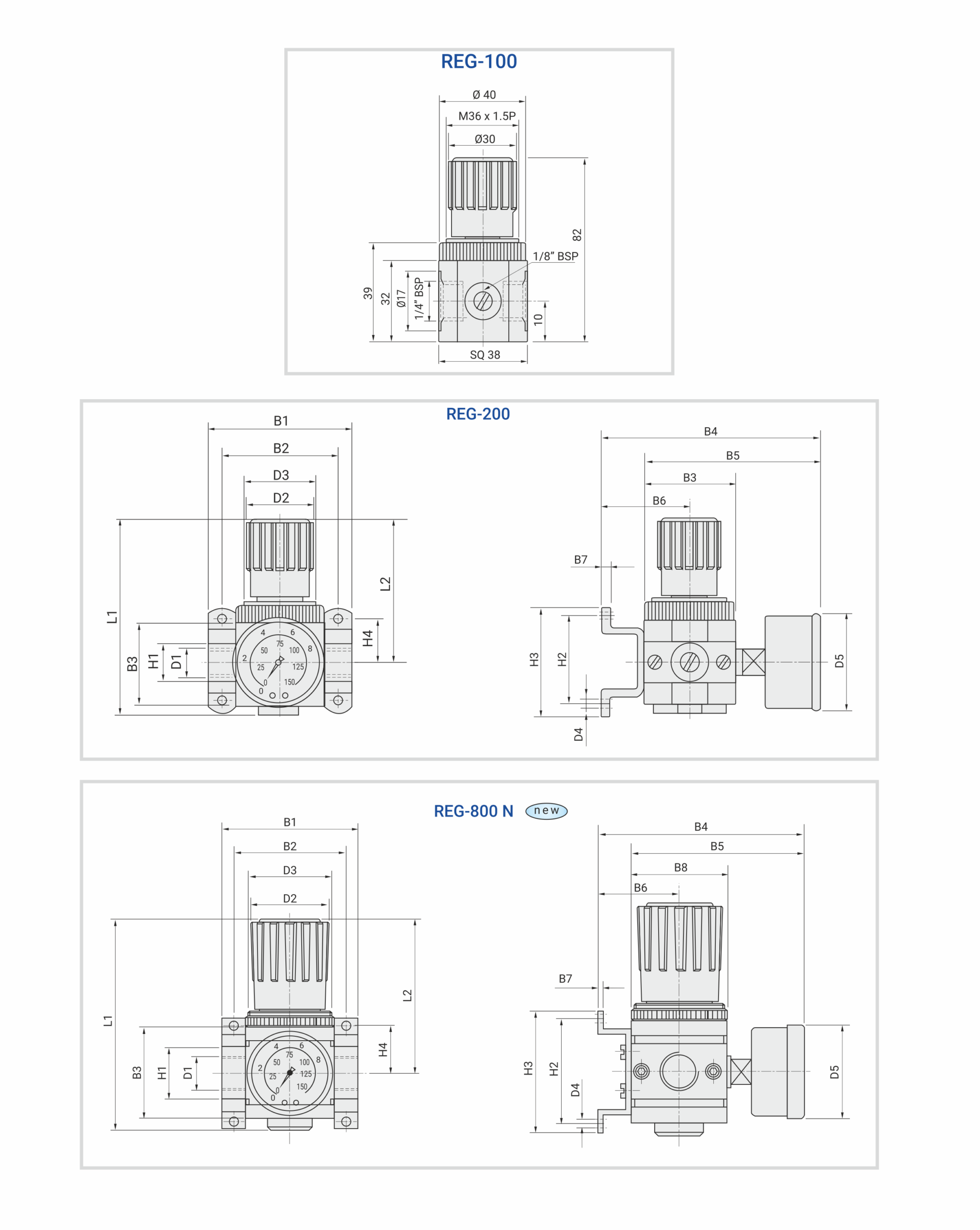

| Type | B1 | B2 | B3 | B4 | B5 | B6 | B7 | B8 | D1 BSP | D2 Dia | D3 | D4 Dia. | D5 Dia | H1 | H2 | H3 | H4 | L1 | L2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| REG - 200 | 64 | 52 | 40 | 98 | 77 | 40.0 | 2 | -- | 1/4" | 31 | M36 x 1.5P | 4.2 | 38 | 21 | 35 | 42 | 17.5 | 96 | 68.0 |
| REG - 800 N | 85 | 70 | 57 | 118 | 99 | 46.5 | 3 | 55 | 1/2" | 49 | M52 x 1.5P | 5.5 | 53 | 32 | 60 | 69 | 30.0 | 132 | 97.5 |
| Specification | REG-100 (Mini) | REG-200 (Midi) | REG-800 N (Midi) |
|---|---|---|---|
| Medium | Filtered compressed Air (Lubricated or UnLubricated) | ||
| Design | Diaphragm Regulators self-relieving | ||
| Mounting | Line Mounting, mounting bracket or in control panel | ||
| Port size | 1/4" BSP | 1/4" BSP | 1/2" BSP |
| Pressure gauge Port size | 1/8" BSP | 1/8" BSP | 1/4" BSP |
| Installation position | Any | Any | Any |
| Standard nominal flow rate | 1200 lit. / min. | 1500 lit. / min. | 3500 lit. / min. |
| Maximum operating pressure | 10 Bar | 16 Bar | 16 Bar |
| Regulating pressure | 0.5 to 7 Bar |
0.5 to 7 Bar 0.5 to 12 Bar (optional 0.2-2 Bar, 0.2-4 Bar, 0.5-7 Bar) |
0.5 to 7 Bar 0.5 to 12 Bar |
| Temperature range | -10°C to +60°C | ||
| Material | Housing and connecting plates - Aluminium, Seal - Nitrile | ||
| * with 10 Bar primary pressure, a working pressure of 6 Bar, pressure drop of 1 Bar. | |||
