In this unit, the Filter and the Regulator are combined into a single unit. The dual action diverter enables effective separation of the moisture in a condensate form. This unit has a sintered bronze filtering element for filtering rust and condensate particles from the compressed air.
Excessive condensate is easily drained by opening the drain. The pressure regulator is a diaphragm-operated, relieving type regulator with good flow characteristics. The ‘Push-to-Lock’ adjustment enables to lock the knob in any set pressure.

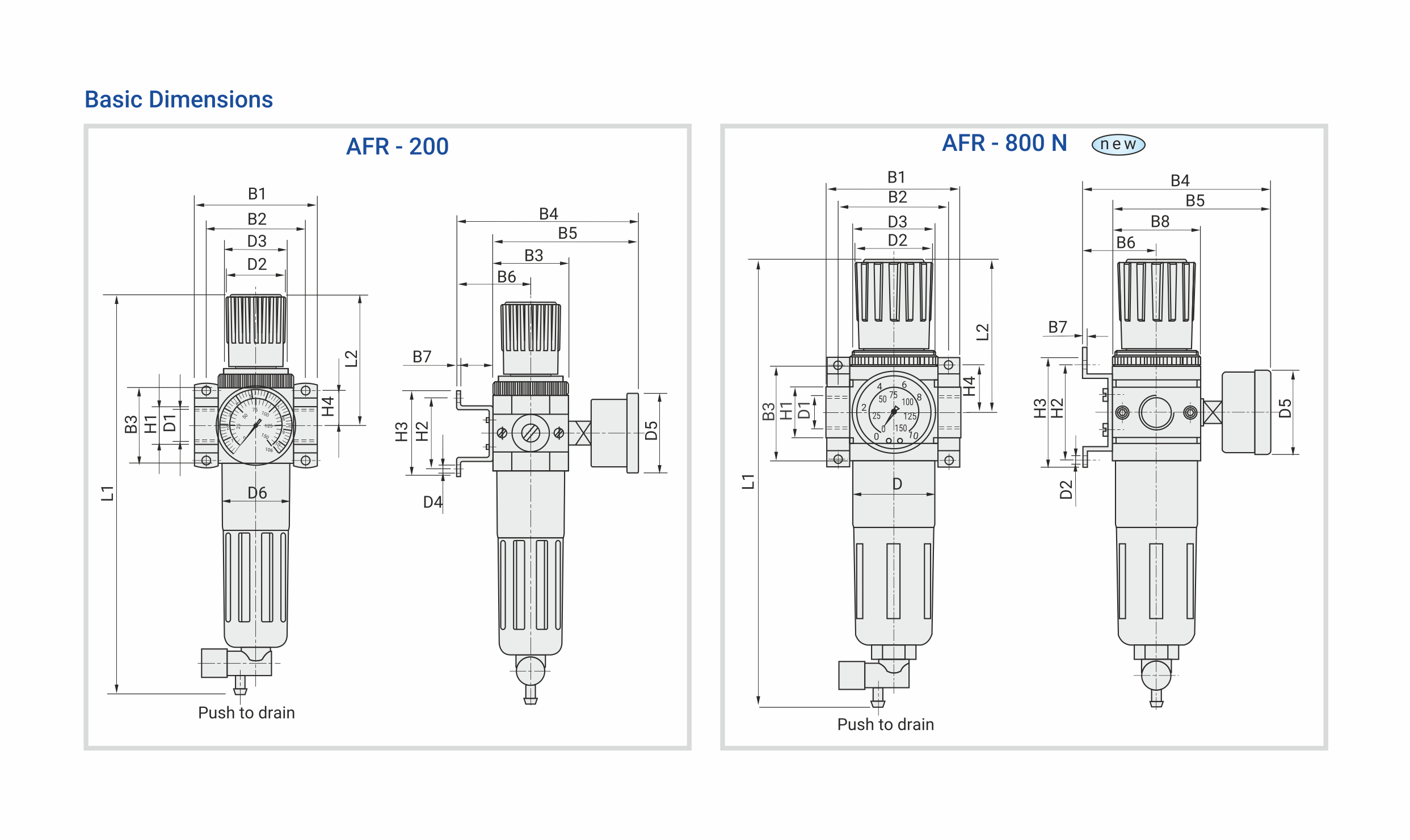

All dimensions in mm unless otherwise specified
| Type | B1 | B2 | B3 | B4 | B5 | B6 | B7 | B8 | D1 BSP | D2 Dia. | D3 | D4 Dia. | D5 Dia. | D6 Dia. | H1 | H2 | H3 | H4 | L1 | L2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AFR-200 | 64 | 52 | 40 | 98 | 77 | 40.0 | 2 | - - | 1/4" BSP | 31 | M36 × 1.5P | 4.2 | 38 | 37 | 20 | 35 | 42 | 17.5 | 213.0 | 68.0 |
| AFR-800 N | 85 | 70 | 59 | 118 | 99 | 46.5 | 3 | 55 | 1/2" BSP | 49 | M52 × 1.5P | 5.5 | 53 | 52 | 32 | 60 | 69 | 30.0 | 280.5 | 97.5 |
| Specifications | AFR-200 | AFR-800 N |
|---|---|---|
| Medium | Compressed air | |
| Design | Sintered filter with double diverter vane | |
| Port size | 1/4" BSP | 1/2" BSP |
| Pressure gauge port size | 1/8" BSP | 1/4" BSP |
| Mounting | Line mounting or mounting bracket | |
| Installation position | Vertical ±5° | |
| Standard nominal flow rate* | 1100 lit./min. | 2800 lit./min. |
| Maximum operating pressure | 16 bar | 16 bar |
| Regulator pressure range |
0.5 to 7 bar 0.5 to 12 bar | |
| Filter rating | Standard 40 Micron (Optional: 1, 2, 5, 10, 25 , 50 , 100) | |
| Temperature range | -10 °C to +60 °C | |
| Condensate capacity (max.) | 22 ml | 43 ml |
| Material |
Housing & connecting plates – Aluminium Filter Bowl – Polycarbonate, Seal – Nitrile | |
*With 10 bar primary pressure, a working pressure of 6 bar, pressure drop of 1 bar.
