PNEUMATIC CYLINDERS
ISO-6432 Miniature Air Cylinders
Features and specifications
In accordance with standard ISO 6432
Bore sizes dia 12, 16, 20, 25 mm
Wide variety of mountings and accessories
High finish cylinder barrel and piston rod
Low friction and long life
In accordance with standard ISO 6432
Bore sizes dia 12, 16, 20, 25 mm
Wide variety of mountings and accessories
High finish cylinder barrel and piston rod
Low friction and long life
Technical Specifications
| Piston Nominal Size (mm) | 12 16 20 25 |
| Medium | Compressed air (filtered, lubricated) |
| Design | Piston Cylinder |
| Mode of operation | Double-acting / single-acting |
| Sensing type | None |
| Type of cushioning | Internal cushioning ring (Non-Adjustable) |
| Operating pressure Min. | 1 bar |
| Operating pressure Max. | 10 bar |
| Min. ambient temperature | -200 C |
| Max. ambient temperature | 800C |
| Material | End caps-Aluminium, Barrel-Stainless steel, Piston rod-S.S. 410 Roller burnished, / En8 Hard Chrome Plated, Seals- Polyurethane |
All dimensions are in millimeters unless otherwise stated.

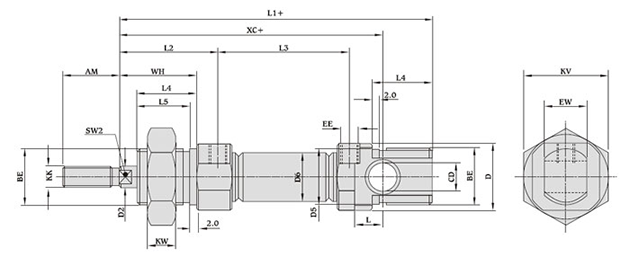

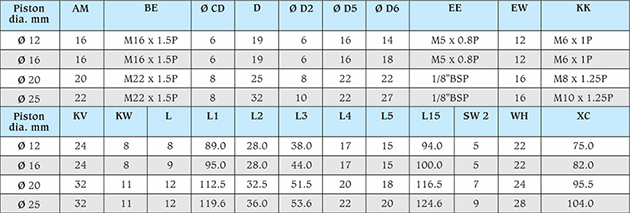

Basic Dimension

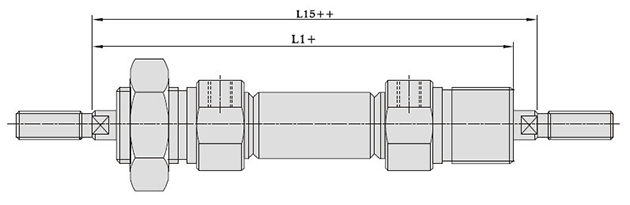

Double-Ended Piston Rod
+ = Stroke lengtd ++ = 2 x Stroke lengtd
